Nissan Armada 2025-2026 Service and Repair Manual: Welding Method for Stud Bolt and Nut

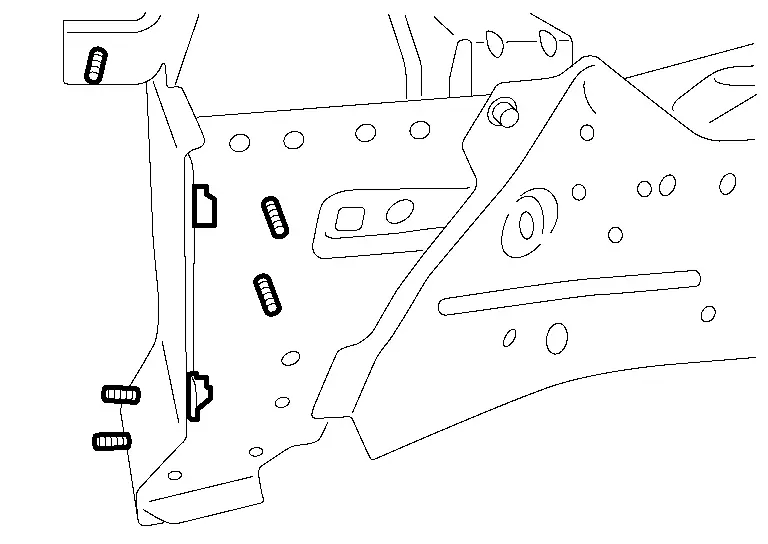

When stud bolts and weld nuts are not welded on the part acquired for repair, and are supplied as separate parts, use the following method to perform welding.
(1) FLANGE BOLT
Remove paint, rust, or oils on the surface of the panel.
Insert the bolt, temporarily tighten the matching nut of the bolt, and perform centering.
Apply zinc weld primer to surfaces to be welded.
Weld 3 points evenly by MAG weld. [approximately 3 mm (0.12 in)]
Apply an appropriate anti-corrosive treatment to the respective locations.
NOTE:The same welding method is also applied when welding on a panel surface without a through hole. Welding is performed with the bolt head surface and panel contact surface contacting.
(2) WELD NUT
Remove paint, rust, or oils on the surface of the panel.
Put the nut on the panel center of the hole, temporarily tighten the matching bolt of the nut, and perform centering.
Weld 3 or 4 points evenly by MAG weld. [approximately 3 mm (0.12 in)]
Apply an appropriate anti-corrosive treatment to the respective locations.
