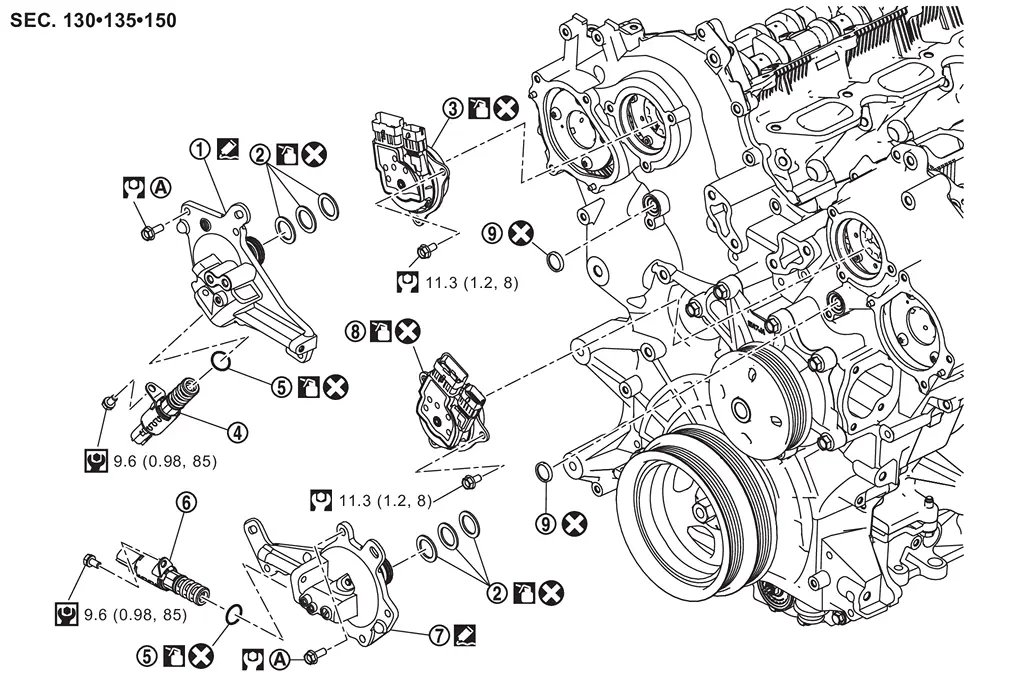

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Valve timing control cover (bank 1) |  | Seal ring |  | Electric intake valve timing control actuator (bank 1) |
 | Valve timing oil control solenoid valve (bank 1) |  | O-ring |  | Valve timing oil control solenoid valve (bank 2) |
 | Valve timing control cover (bank 2) |  | Electric intake valve timing control actuator (bank 2) |  | Valve timing control cover oil filter |
 | Comply with the assembly procedurewhen tightening. Refer to Removal & Installation. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Should be lubricated with oil. | ||||
 | : Sealing point | ||||
Vtc
...
Removal & Installation
WARNING:
REMOVAL
Remove valve timing control covers (bank 1 and bank 2) and gasket as follows:Disconnect valve timing oil control solenoid valve (bank 1 and bank 2) harness connector. Loosen valve tim ...
