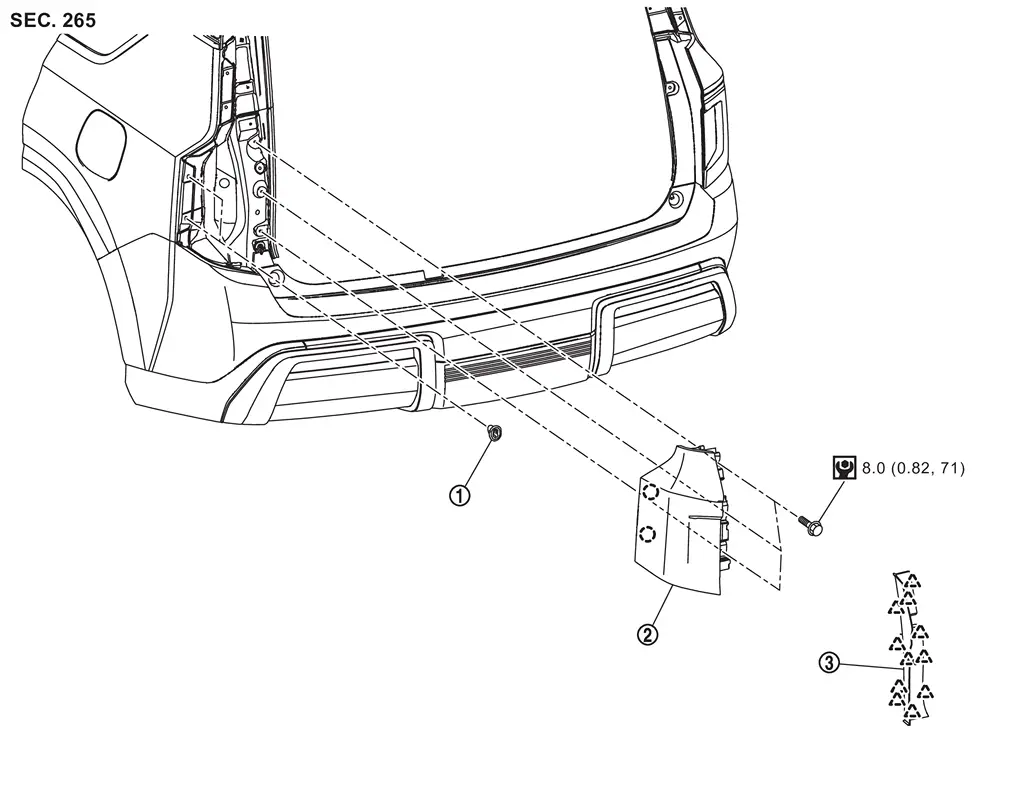

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Rear Combination Lamp

...

Removal and Installation

CAUTION: REMOVAL Fully open back door. Apply protective tape (A) on the part to protect it from damage. Disengage rear combination lamp cover fixing pawls using a remover tool (A), and then remove r ...
