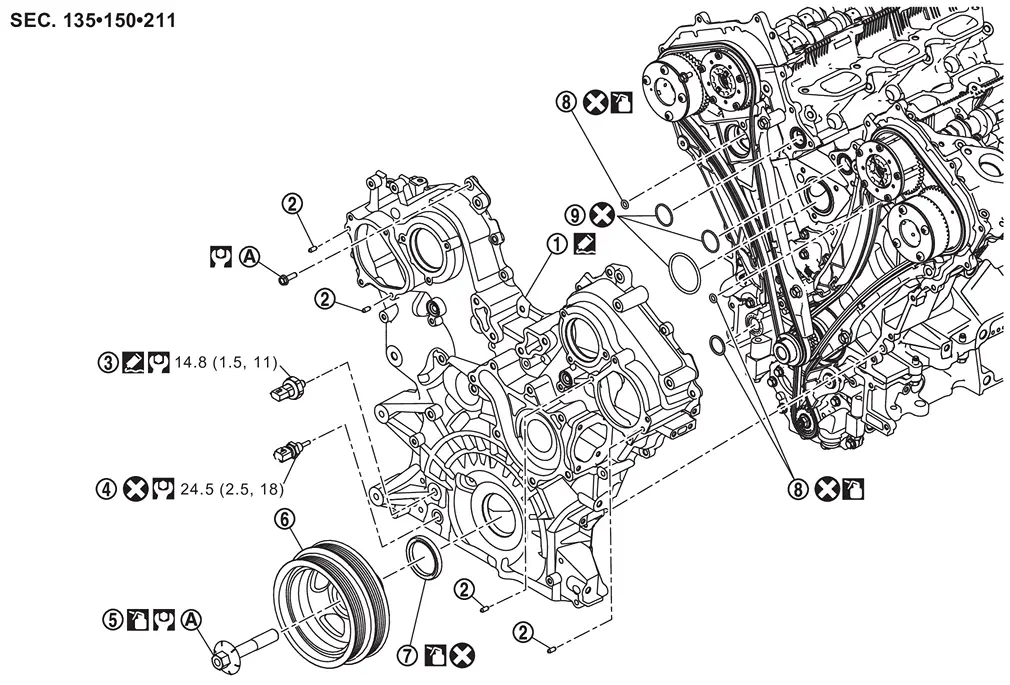

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Engine / Engine Mechanical — Removal and Installation / Front Cover / Exploded View

Front cover	Dowel pin	Oil pressure sensor
Oil temperature sensor	Crankshaft pulley bolt	Crankshaft pulley
Front oil seal	O-ring(oil line)	O-ring(water line)
Comply with the installation procedure when tightening. Refer to Removal & Installation.
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.
: Should be lubricated with oil.
: Sealing point

WARNING: REMOVAL Remove engine cover. Refer to Removal and Installation. Disconnect battery cables from negative terminal. Refer to Removal and Installation. Remove engine under cover front and front ...
