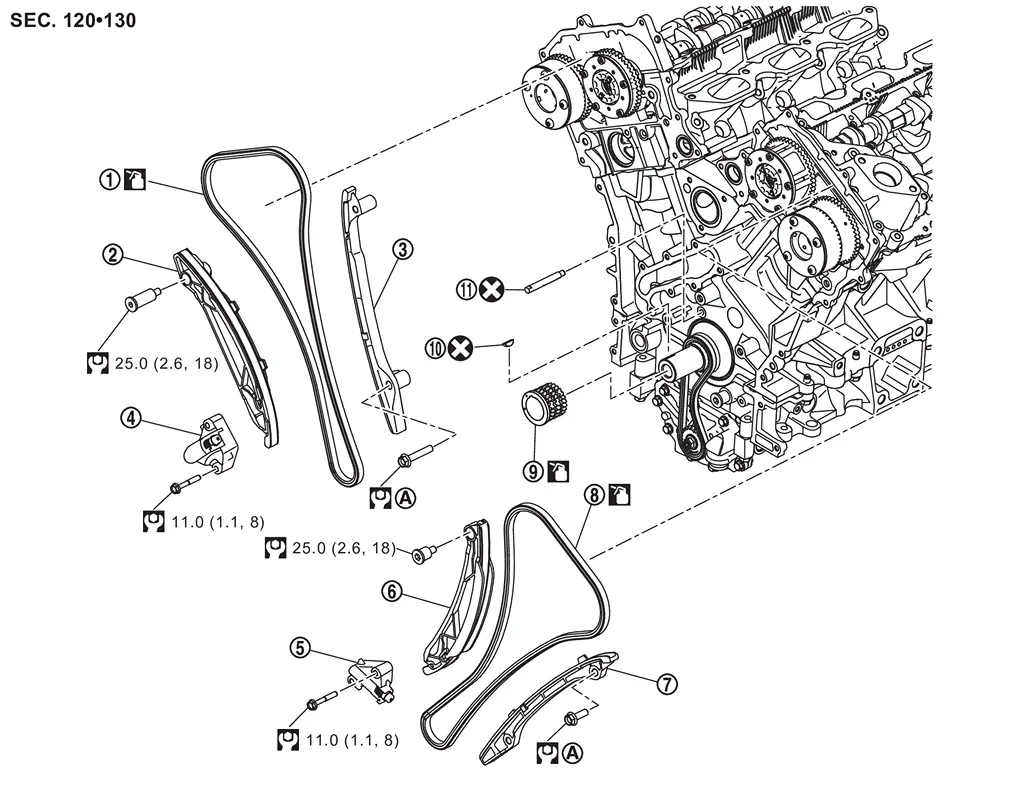

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Timing chain (bank 1) |  | Timing chain slack guide (bank 1) |  | Timing chain tension guide (bank 1) |
 | Timing chain tensioner (bank 1) |  | Timing chain tensioner (bank 2) |  | Timing chain slack guide (bank 2) |
 | Timing chain tension guide (bank 2) |  | Timing chain (bank 2) |  | Crankshaft sprocket |
 | Crankshaft key |  | Timing chain oil jet | ||
 | Comply with the installation procedure when tightening. Refer to Removal and Installation. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Should be lubricated with oil. | ||||
Timing Chain
...
Removal and Installation
WARNING:
REMOVAL
Remove valve timing control covers (bank 1 and bank 2). Refer to Removal & Installation.
Remove electric intake valve timing control actuator (bank 1 and bank 2). Refer to Removal ...
