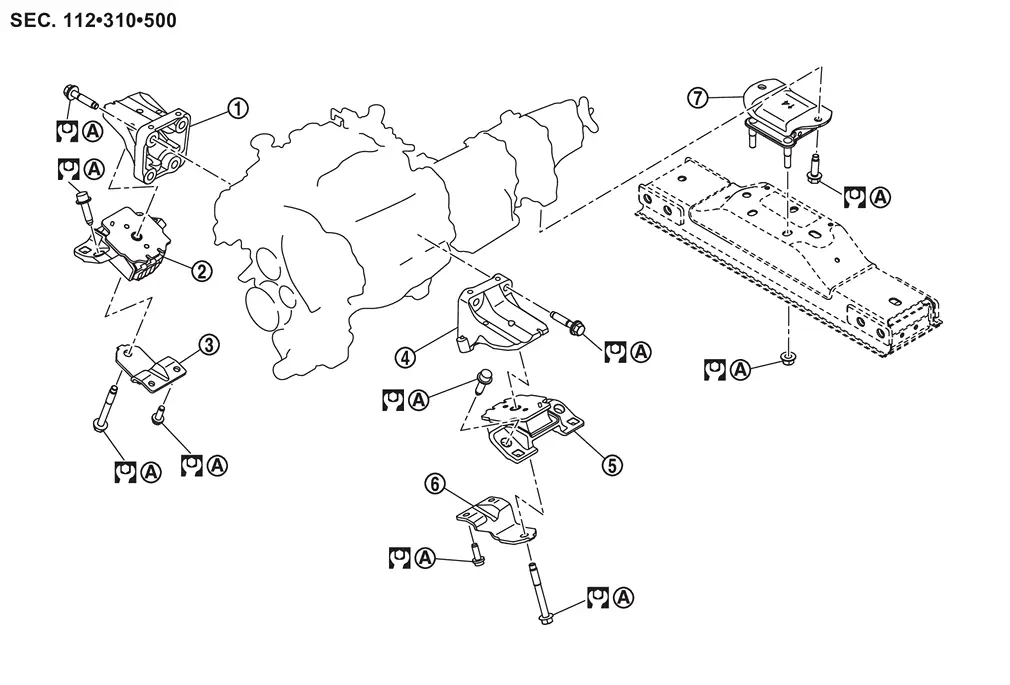

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Engine mounting bracket (RH) |  | Engine mounting insulator (RH) |  | Stopper bracket (RH) |
 | Engine mounting bracket (LH) |  | Engine mounting insulator (LH) |  | Stopper bracket (LH) |
 | Engine mounting insulator (rear) | ||||
 | Comply with the assembly procedure when tightening. Refer to Unit Removal & Installation. | ||||
 | : N·m (kg-m, ft-lb) | ||||
