Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
When removing, always use a remover tool that is made of plastic.

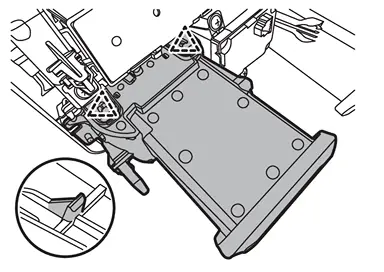

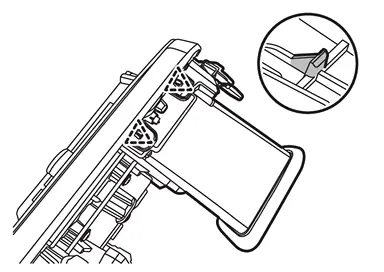

Remove center ventilator grille.Remove fixing screw
.
 | : Pawl |
| : Pawl |
INSTALLATION
Install in the reverse order of removal.
