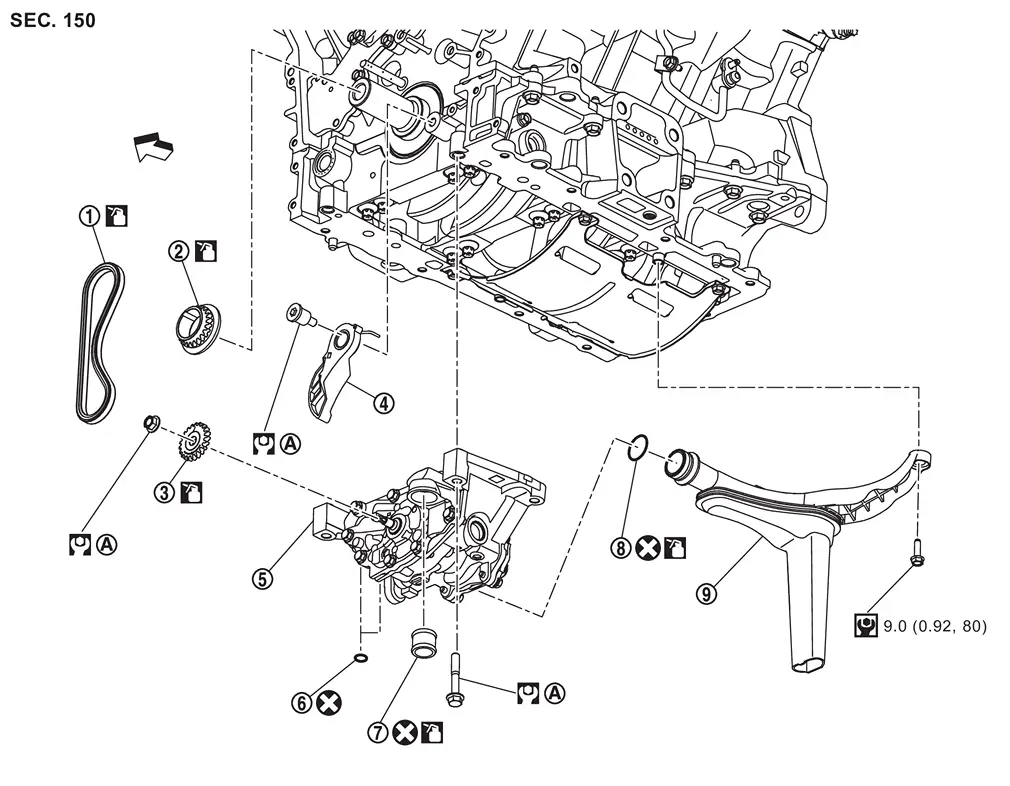

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Oil pump drive chain |  | Oil pump sprocket |  | Oil pump drive sprocket |
 | Oil pump drive chain tensioner |  | Oil pump assembly |  | O-ring |
 | Oil pump seal |  | O-ring |  | Oil strainer |
 | Comply with the installation procedure when tightening. Refer to Removal and Installation | ||||
 | : Engine front | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Should be lubricated with oil. | ||||
Oil Pump
...
Removal and Installation
REMOVAL
Remove the following parts:
VTC. Refer to Removal & Installation.
Front cover. Refer to Removal & Installation.
Timing chain. Refer to Removal and Installation.
Oil pan (lower). Refer ...
