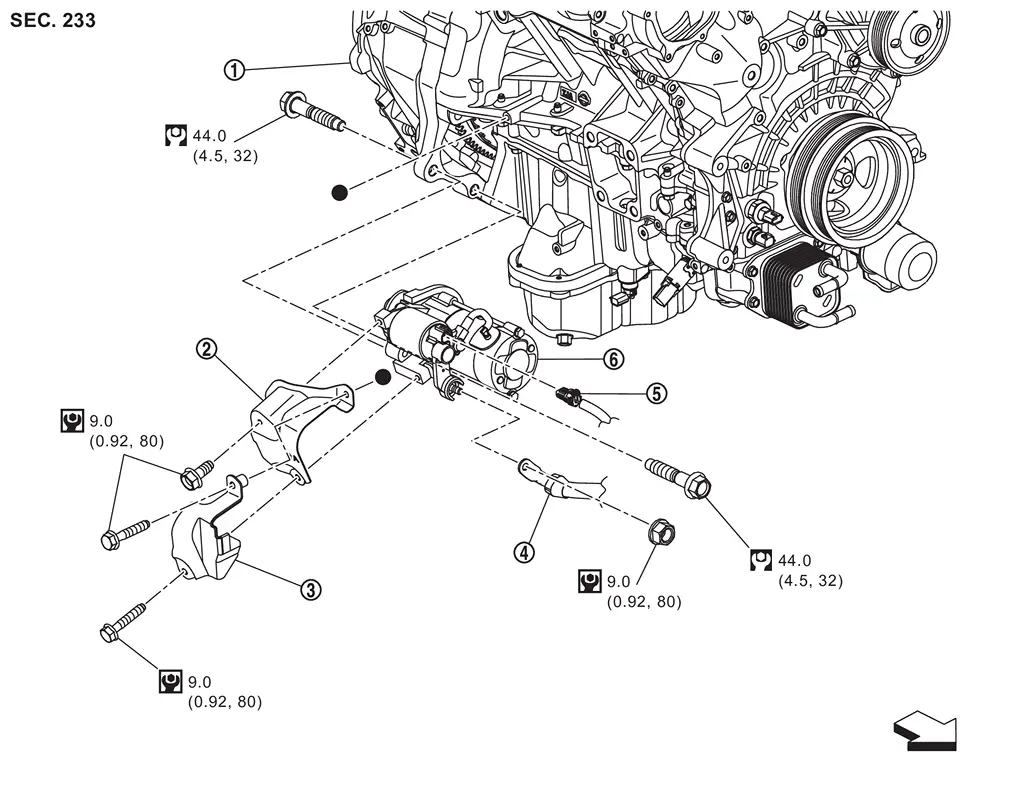

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Transmission housing |  | Starter motor cover 1 |  | Starter motor cover 2 |
 | “B” terminal harness |  | Starter motor harness connector |  | Starter motor |
 | : Vehicle front | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
 : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Vr35ddtt
...
Removal and Installation
WARNING:
REMOVAL
Disconnect battery cable from negative terminal. Refer to Removal and Installation.
Remove engine under cover rear. Refer to Removal and Installation.
Remove front cross member. Refer ...
