Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Disconnect battery cable from negative terminal. Refer to Removal and Installation.
Remove engine under cover rear. Refer to Removal and Installation.
Remove front cross member. Refer to Removal and Installation.

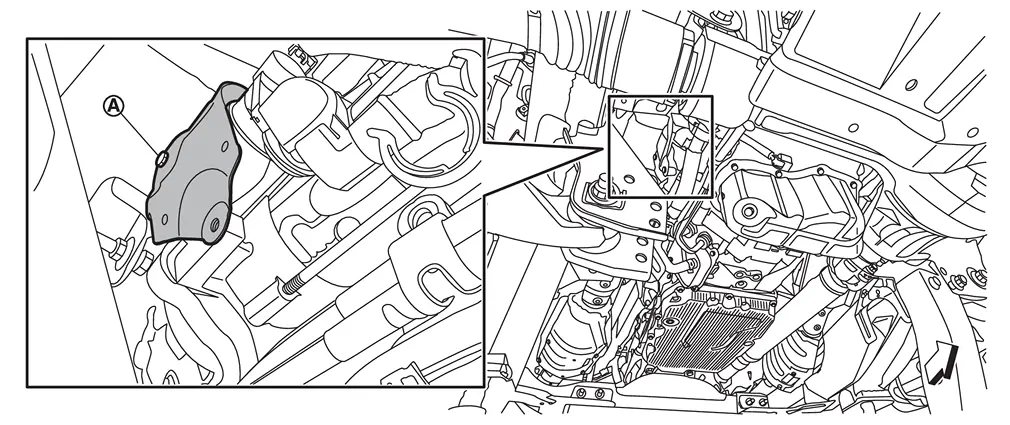

Remove starter motor cover 2 mounting bolts
, and then remove starter motor cover 2.
 | : Vehicle front |

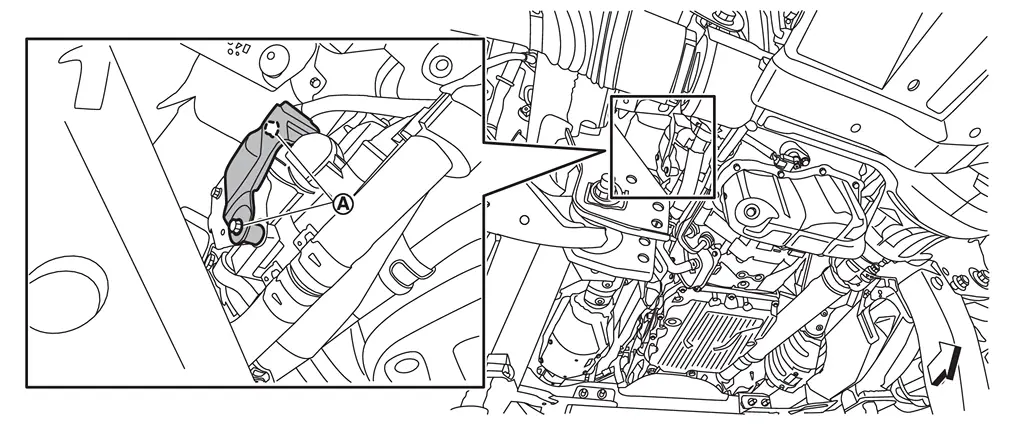

Remove starter motor cover 1 mounting bolt , and then remove starter motor cover 1.
| : Vehicle front |

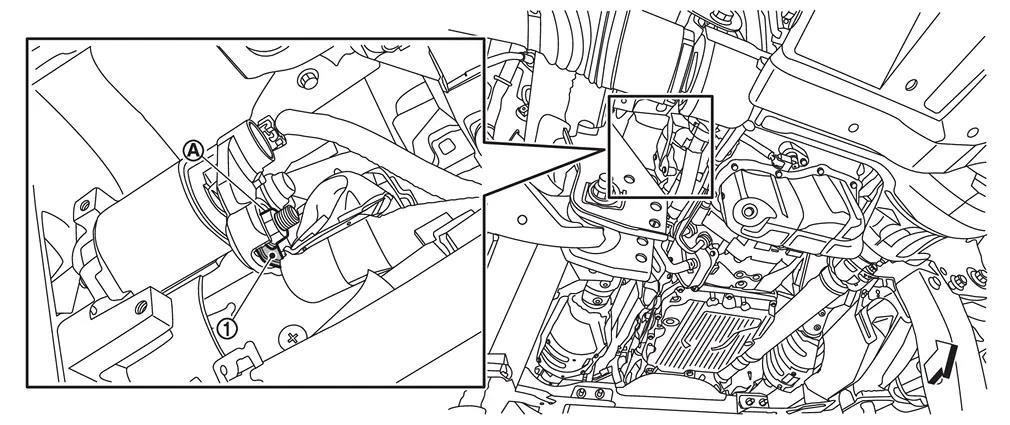

Remove "B" terminal harness mounting nut , and then disconnect "B" terminal harness
.
| : Vehicle front |

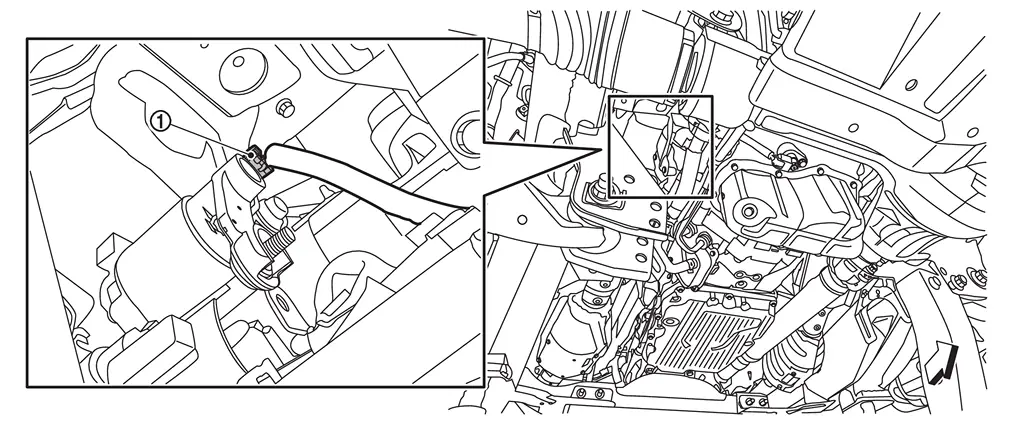

Disconnect starter motor harness connector .
| : Vehicle front |

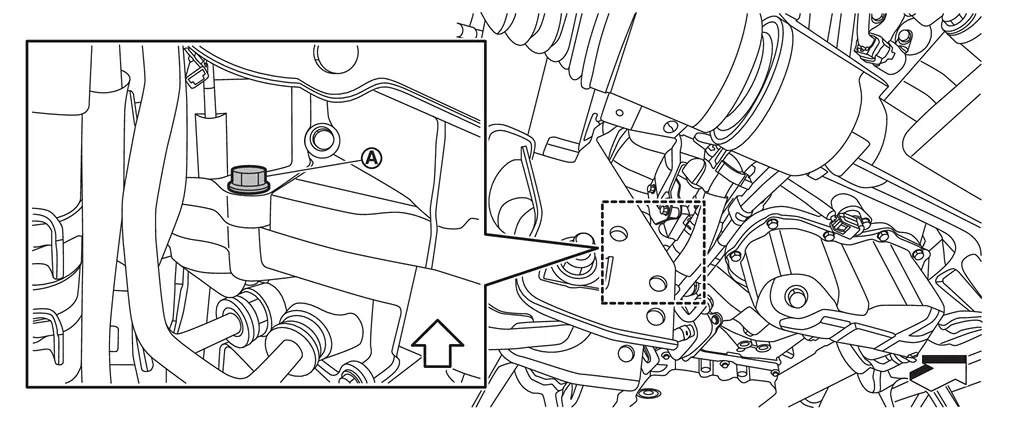

Remove starter motor upper side mounting bolt .
| : Vehicle front |

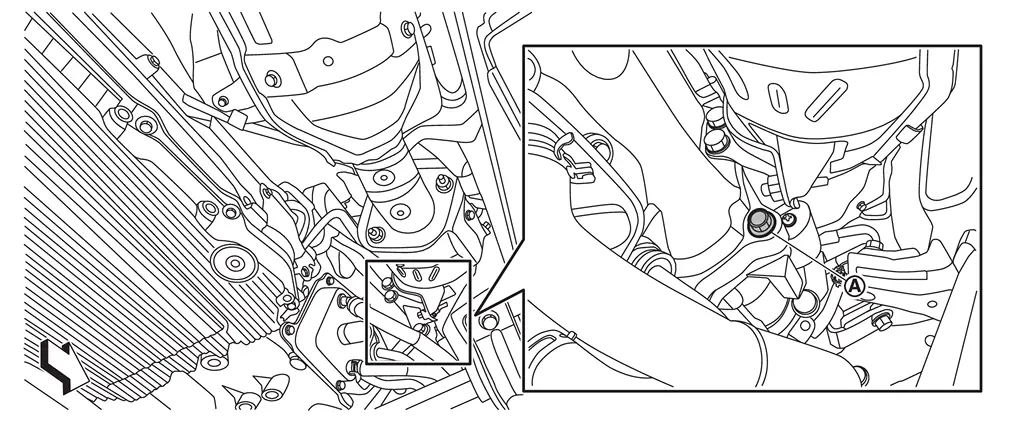

Remove starter motor lower side mounting bolt .
| : Vehicle front |
Remove starter motor from vehicle.
CAUTION:
Never damage around the parts.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
Be careful to tighten “B” terminal harness mounting nut to the specified torque. Refer to Exploded View.
Exploded View
Transmission housing Starter motor cover 1 Starter motor cover 2 “B” terminal harness Starter motor harness connector Starter motor : Vehicle front : N·m (kg-m, in-lb) : N·m (kg-m, ft ...
Inspection
MAGNETIC SWITCH
Remove starter motor from vehicle. Refer to Removal and Installation.
Connect 12V battery to starter motor as shown in the figure. Check that pinion gear is driven out by magnetic sw ...
