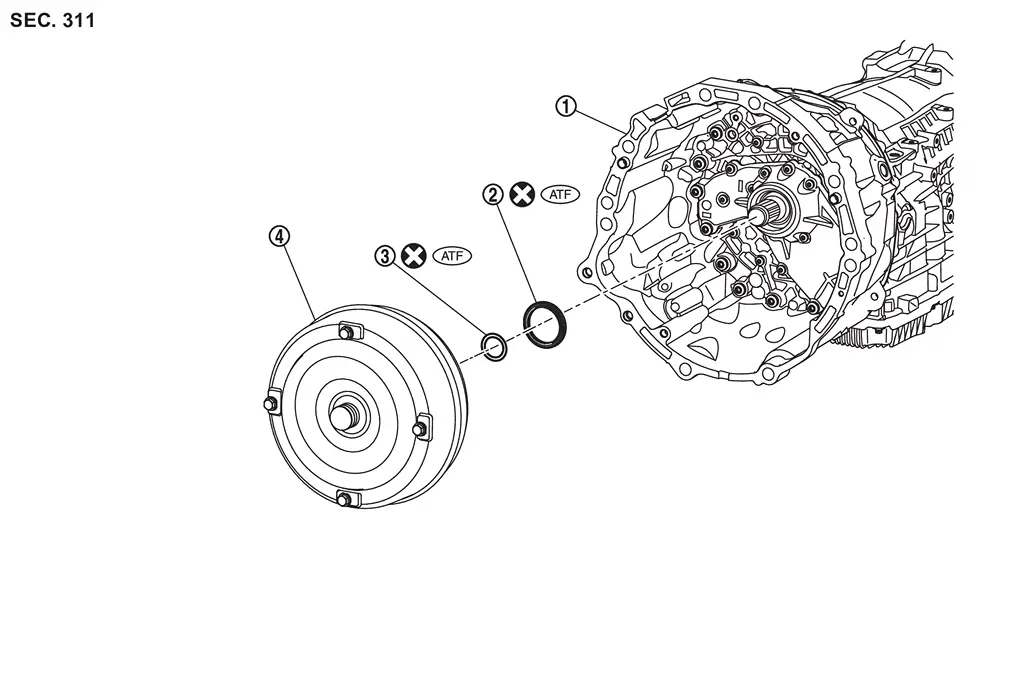

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | A/T assembly |  | Converter housing oil seal |  | Seal ring |
 | Torque converter | ||||
 | : Always replace after every disassembly. | ||||
 | : Apply ATF | ||||
Removal and Installation
WARNING:
REMOVAL
Remove A/T assembly. Refer to Removal and Installation (2WD), Removal and Installation (4WD).
Remove torque converter by holding it firmly and turning while pulling straight out.
Remo ...
