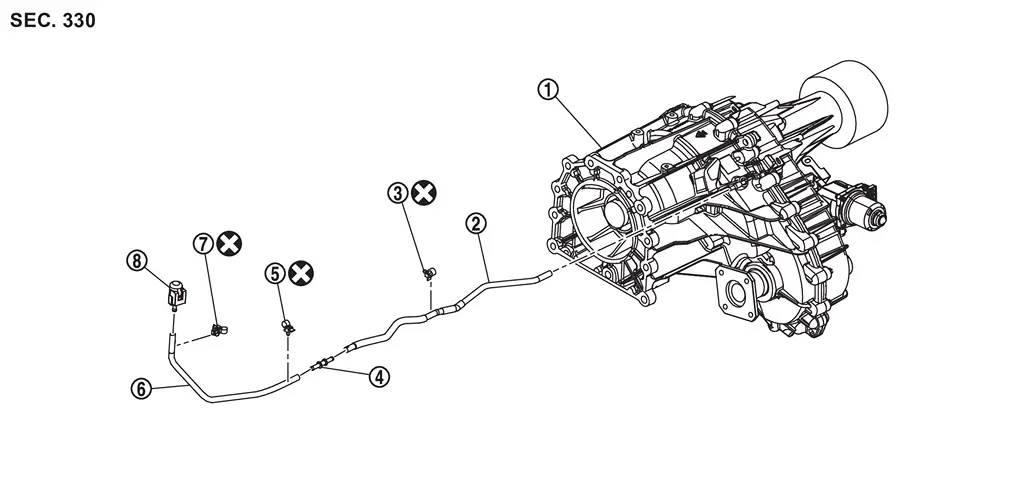

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Transfer assembly |  | Air breather hose A |  | Clip A |
 | Hose connector |  | Clip B |  | Air breather hose B |
 | Clip C |  | Air breather | ||
 | : Always replace after every disassembly. | ||||
Air Breather
...
Removal and Installation
WARNING:
REMOVAL
Remove air breather hose A from transfer assembly.
Remove clip A .
Remove clip B .
Remove A/T air breather hose. Refer to Removal and Installation.
Release clip C and remove a ...
