Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

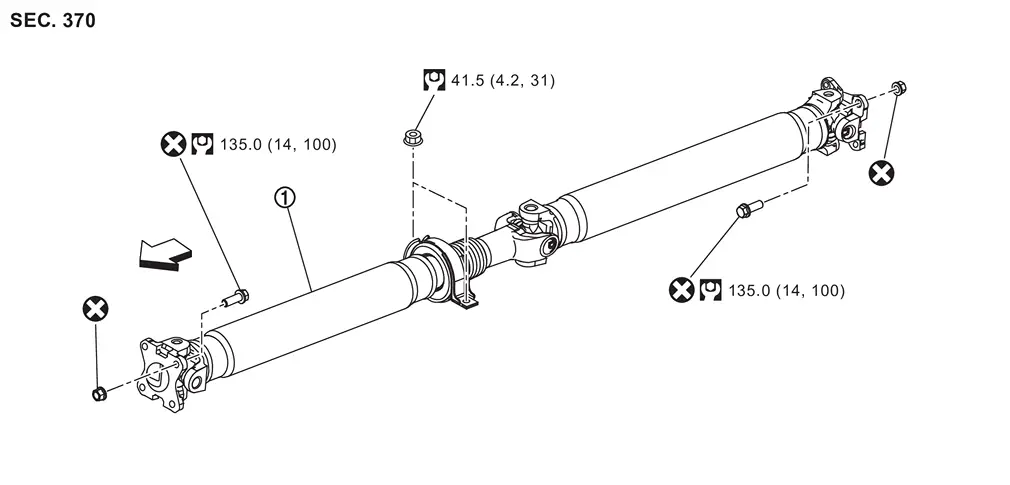

REMOVAL
 | Propeller shaft assembly |
 : Vehicle front | |||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. |

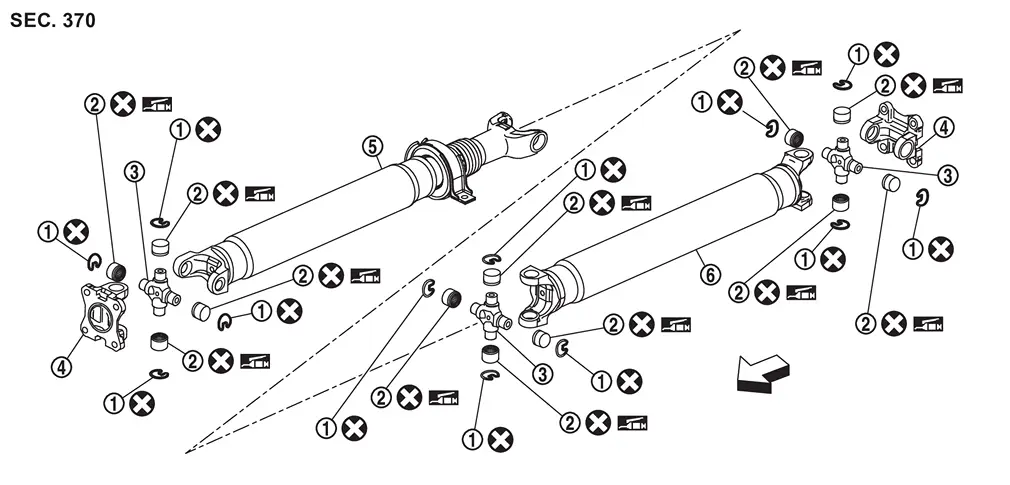

DISASSEMBLY
| Snap ring |  | Journal bearing |  | Journal |
 | Flange yoke |  | Propeller shaft (1st shaft) |  | Propeller shaft (2nd shaft) |
| : Vehicle front | |||||
| : Always replace after every disassembly. | |||||
 : Apply multi-purpose grease. | |||||
NOTE:
Replace , and as a set.
Removal and Installation
WARNING:
REMOVAL
Shift the transmission to the neutral position, and then release the parking brake.
Put matching mark on rear propeller shaft flange yoke and transmission companion flange.
CAUTION ...
