Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Shift the transmission to the neutral position, and then release the parking brake.

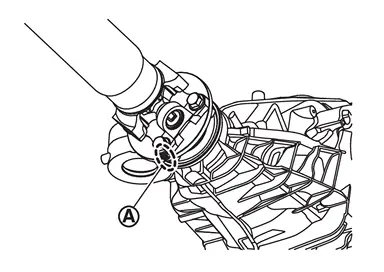

Put matching mark
on rear propeller shaft flange yoke and transmission companion flange.
CAUTION:
For matching mark, use paint. Never damage propeller shaft flange and transmission companion flange.

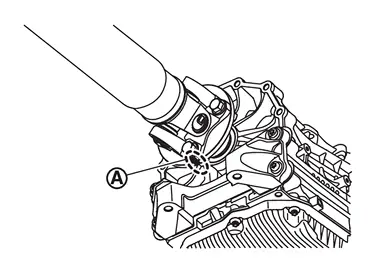

Put matching mark on rear propeller shaft flange yoke and rear final drive companion flange.
CAUTION:
For matching mark, use paint. Never damage propeller shaft flange and final drive companion flange.

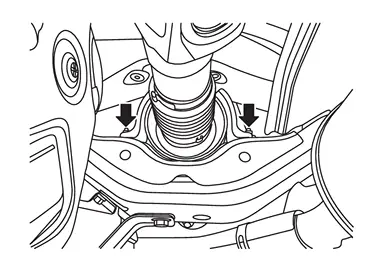

Remove center bearing mounting bracket fixing nuts (
).
Remove propeller shaft assembly fixing bolts and nuts, and separate propeller shaft assembly from transmission companion flange and final drive companion flange.
Remove propeller shaft assembly.
Perform inspection after removal. Refer to Inspection.
INSTALLATION
Note the following, and install in the reverse order of removal.
For non-reusable parts, refer to Exploded View.
For each tightening torque, refer to Exploded View.
Align matching mark
to install propeller shaft flange yoke and rear final drive companion flange.Align matching mark
to install propeller shaft flange yoke and transmission companion flange.If propeller shaft or final drive has been replaced, connect them as follows:
- Install propeller shaft
while aligning matching mark of propeller shaft with matching mark
of final drive
on the joint as close as possible.
- Install propeller shaft
Perform inspection after installation. Refer to Inspection.
Exploded View
REMOVAL
Propeller shaft assembly
: Vehicle front : N·m (kg-m, ft-lb) : Always replace after every disassembly.
DISASSEMBLY
Snap ring Journal bearing Journal Flange yoke Propeller shaft (1st ...
Disassembly and Assembly
DISASSEMBLY
Put a matching mark between propeller shaft and flange yoke as shown.
CAUTION:
For matching mark, use paint. Never damage the surface.
Remove snap rings .
Lightly tap bottom of yoke us ...
