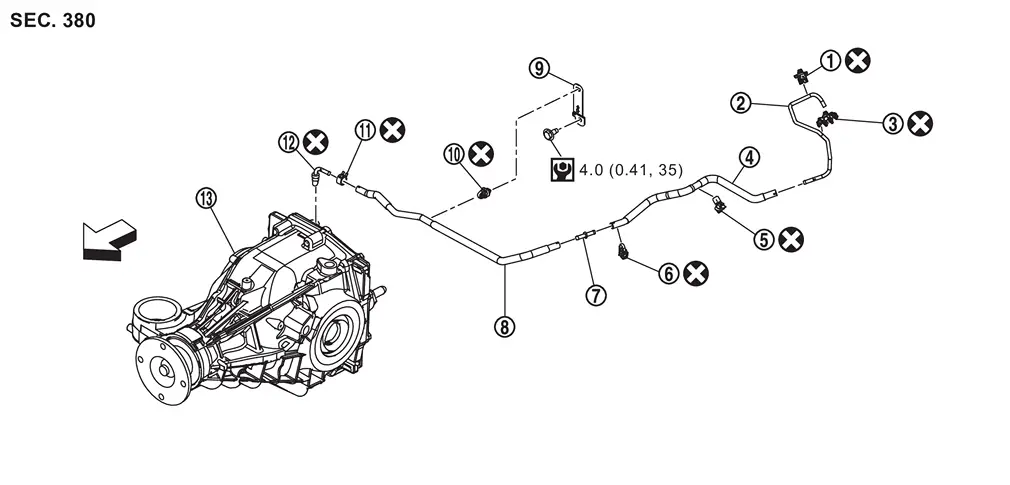

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Clip A |  | Air breather tube |  | Clip B |
 | Air breather hose A |  | Clip C |  | Clip D |
 | Hose connector |  | Air breather hose B |  | Bracket |
 | Clip E |  | Hose clamp |  | Air breather |
 | Rear final drive assembly | ||||
 : Vehicle front | |||||
 : N·m (kg-m, in-lb) | |||||
 : Always replace after every disassembly. | |||||
Air Breather
...
Removal and Installation
WARNING:
REMOVAL
Remove the hose clamp and separate air breather hose B from air breather .
Remove clip E from bracket .
Remove bracket mounting bolt () and remove bracket .
Remove clip D fr ...
