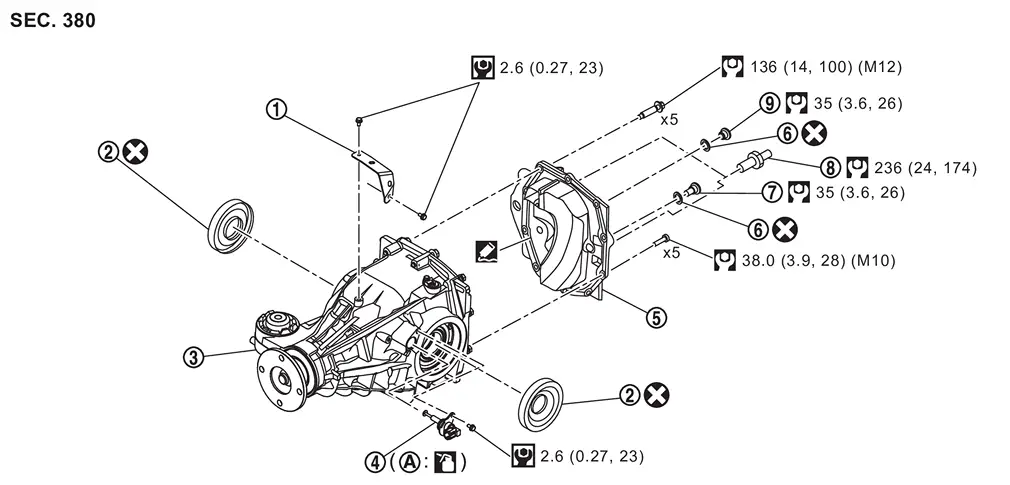

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Bracket |  | Side oil seal |  | Rear final drive assembly |
 | Differential lock position switch |  | Rear cover |  | Gasket |
 | Drain plug |  | Stud bolt |  | Filler plug |
 | O-ring | ||||
 : N·m (kg-m, in-lb) | |||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||
 : Apply gear oil. | |||||
 : Apply Genuine Liquid Gasket, Three Bond 1217 or equivalent. Refer to Recommended Chemical Products and Sealants. | |||||
Disassembly and Assembly
DISASSEMBLY
Remove bracket from rear final drive assembly.
Remove drain plug and gasket from rear cover and drain gear oil.
Remove filler plug and gasket from rear cover.
Remove differential lock posi ...
