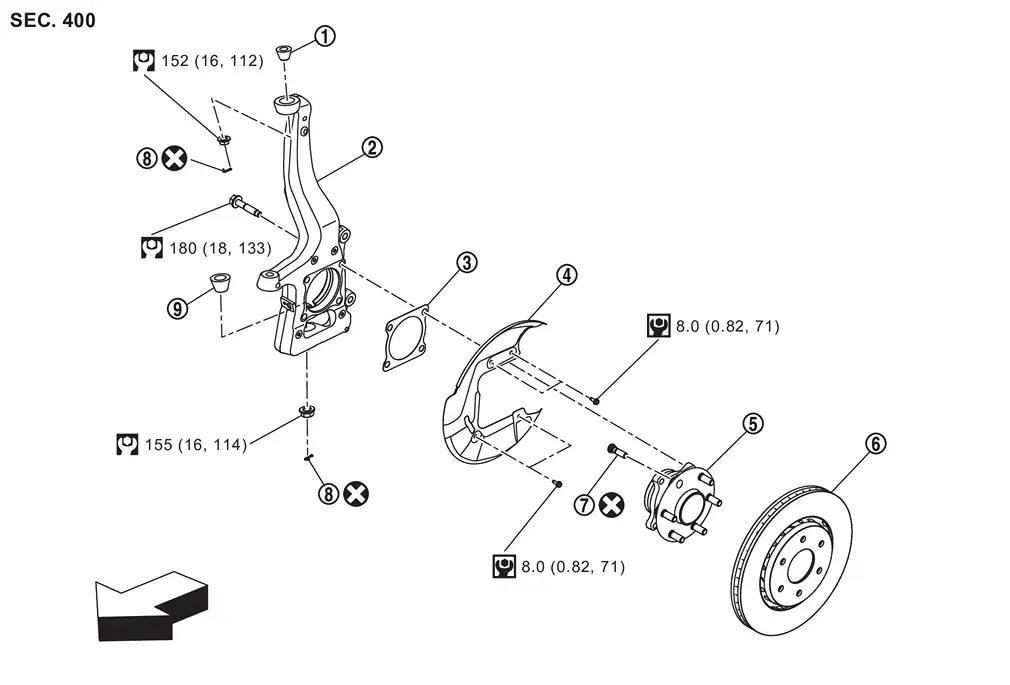

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Upper ball seat |  | Steering knuckle |  | Baffle |
 | Splash guard |  | Wheel hub and bearing assembly |  | Disc rotor |
 | Hub bolt |  | Cotter pin |  | Lower ball seat |
 | : Vehicle front | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. | ||||
Removal and Installation
WARNING:
REMOVAL
Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation.
Remove brake hose bracket. Refer to Removal and Installation.
Remove brake caliper assembly. Hang brake caliper as ...
