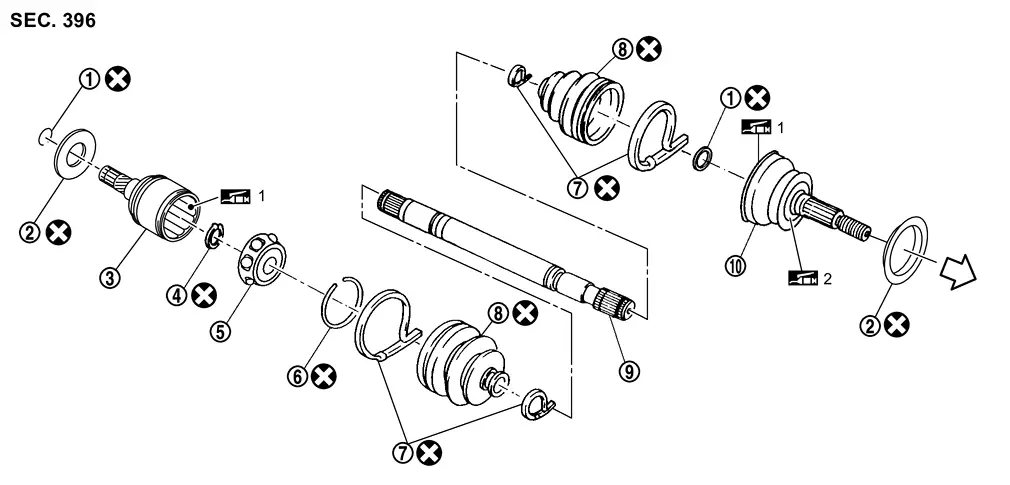

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Circular clip |  | Dust shield |  | Housing |
 | Snap ring |  | Ball cage/steel ball/inner race assembly |  | Stopper ring |
 | Boot band |  | Boot |  | Shaft |
 | Joint sub-assembly | ||||
 : Wheel side | |||||
 1: NISSAN genuine grease or an equivalent. | |||||
| 2: Apply paste [service parts (440037S000)]. | |||||
 : Always replace after every disassembly. | |||||
Rear Drive Shaft
...
Removal and Installation
WARNING:
WITHOUT DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION
Removal
Remove rear tire. Refer to ROAD WHEEL TIRE : Removal & Installation.
CAUTION:
Never depress brake pedal while cali ...
