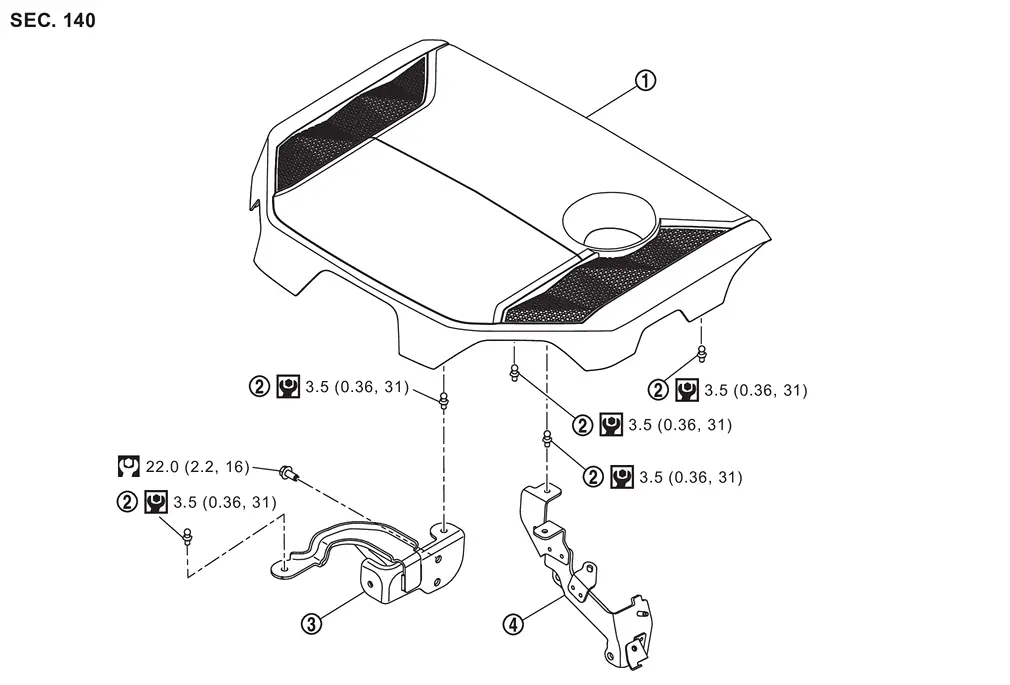

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Engine Cover

...

Removal and Installation

REMOVAL Remove engine cover. If necessary remove the bracket. CAUTION: Never damage or scratch engine cover when installing or removing. INSTALLATION Installation is the reverse order of removal. ...
