Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

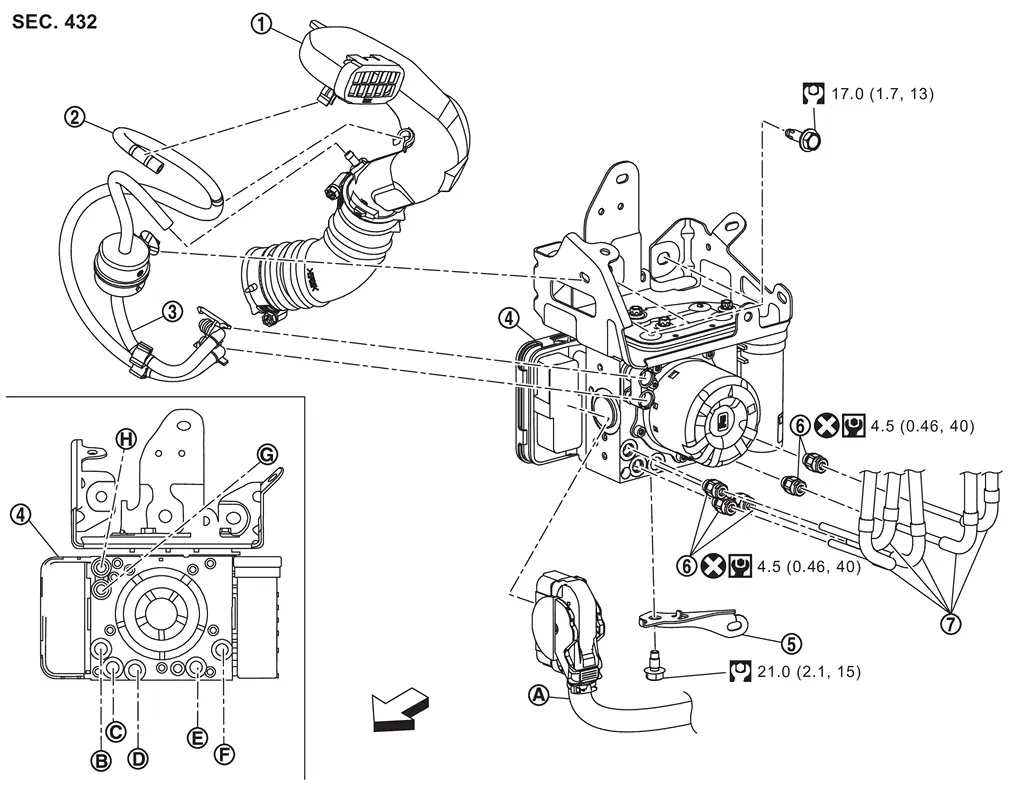

 | Air suspension LH duct assembly |  | Breather hose (exhaust) |  | Breather hose (intake) |
 | Air suspension control module |  | Bracket |  | Air connector |
 | Air tube | ||||
 | Air suspension control module harness connector |  | To rear RH air spring |  | To rear LH air spring |
 | To front RH shock absorber |  | To air tank |  | To front LH shock absorber |
 | To breather hose (exhaust) |  | To breather hose (intake) | ||
 | :Vehicle front | ||||
 | :Always replace after every disassembly. | ||||
 | :N·m (kg-m, ft-lb) | ||||
 | :N·m (kg-m, in-lb) | ||||
Removal and Installation
REMOVAL
WARNING:
CAUTION:
Never removal and install air suspension control module by holding air suspension control module harness.
Start engine.
Turn OFF the electronic air suspension function. Refe ...
