Nissan Armada 2025-2026 Service and Repair Manual: Inspection and Adjustment
REAR WASHER NOZZLE (CHECK VALVE)
Inspection
Check that air can pass through by blowing forward direction (toward nozzle side), and check that air cannot pass through by sucking reverse direction (toward washer tank side).
REAR WASHER NOZZLE SPRAY POSITION
Inspection
NOTE:

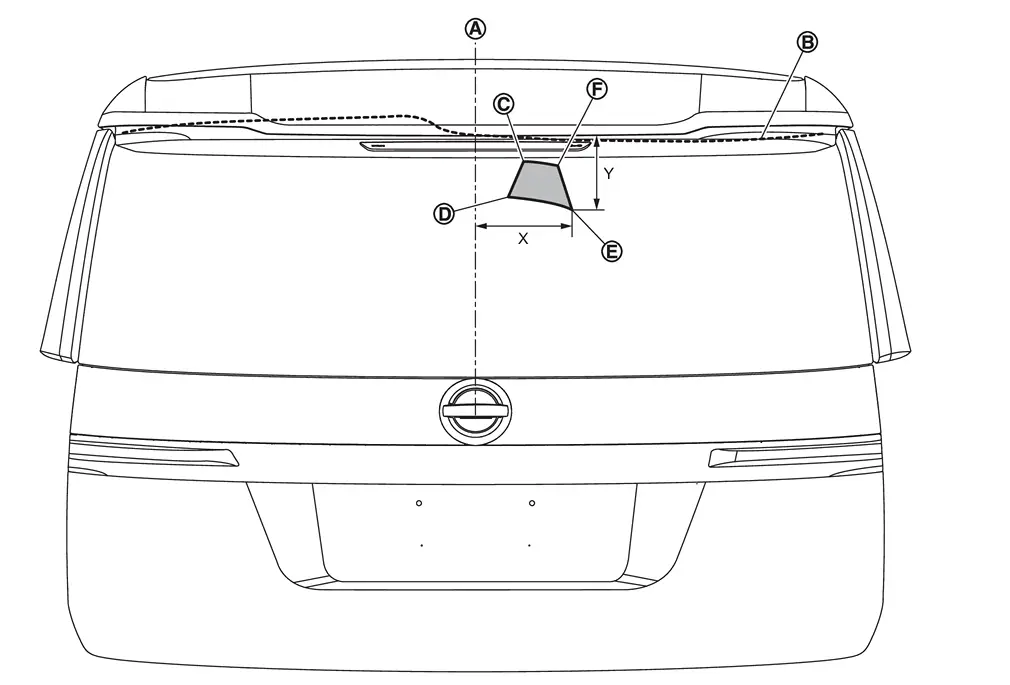

Refer to the figure below for the rear washer nozzle spray position.
 | Center |  | Edge of back door window glass | ||
 | : Spray area |
Unit: mm (in)
 |  |  |  | |
X (from center) | 93.1 (3.67) | 64.2 (2.53) | 186.6 (7.35) | 158.4 (6.24) |
Y (from edge of back door window glass) | 37.7 (1.48) | 109.5 (4.31) | 134.6 (5.30) | 45.1 (1.78) |
Adjustment
Use washer nozzle adjuster (A) for rear washer nozzle
adjustment.
CAUTION:
Never use needle or small pin for adjustment.
Removal and Installation
REMOVAL
CAUTION:
Remove rear spoiler. Refer to Removal and Installation.
While pushing rear washer nozzle fixing pawl , remove rear washer nozzle with rear washer nozzle tube in the direction of the ...
