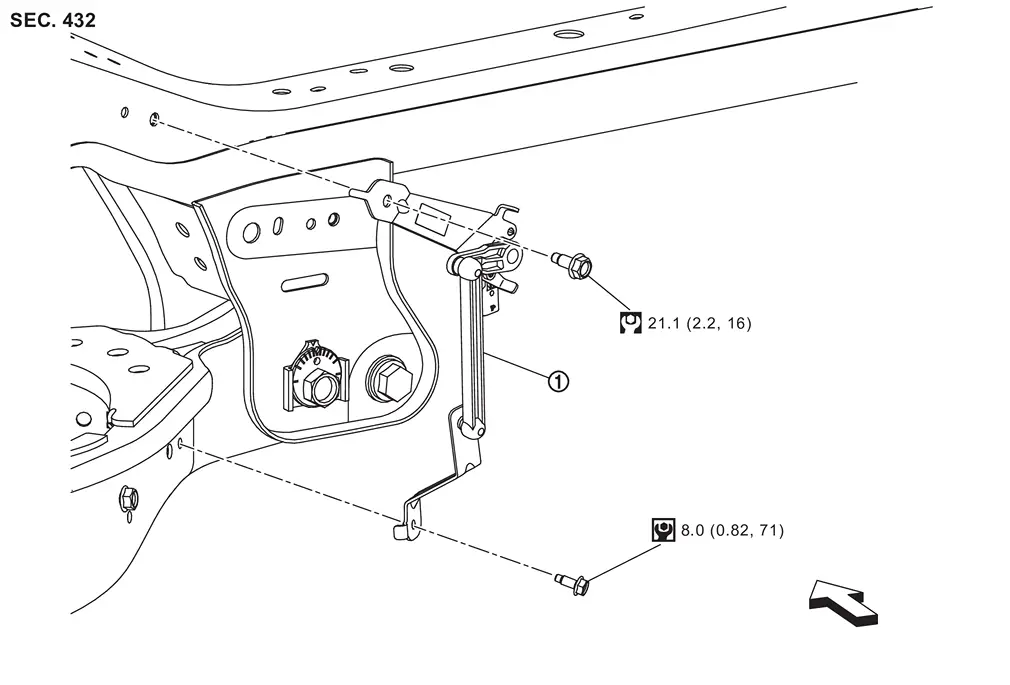

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Rear Height Sensor

...

Removal and Installation

REMOVAL WARNING: CAUTION: Never disassemble the rear height sensor. Start engine. Turn OFF the electronic air suspension function. Refer to Operation. Stop engine. Lift up the vehicle. Disconnect rea ...
