Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

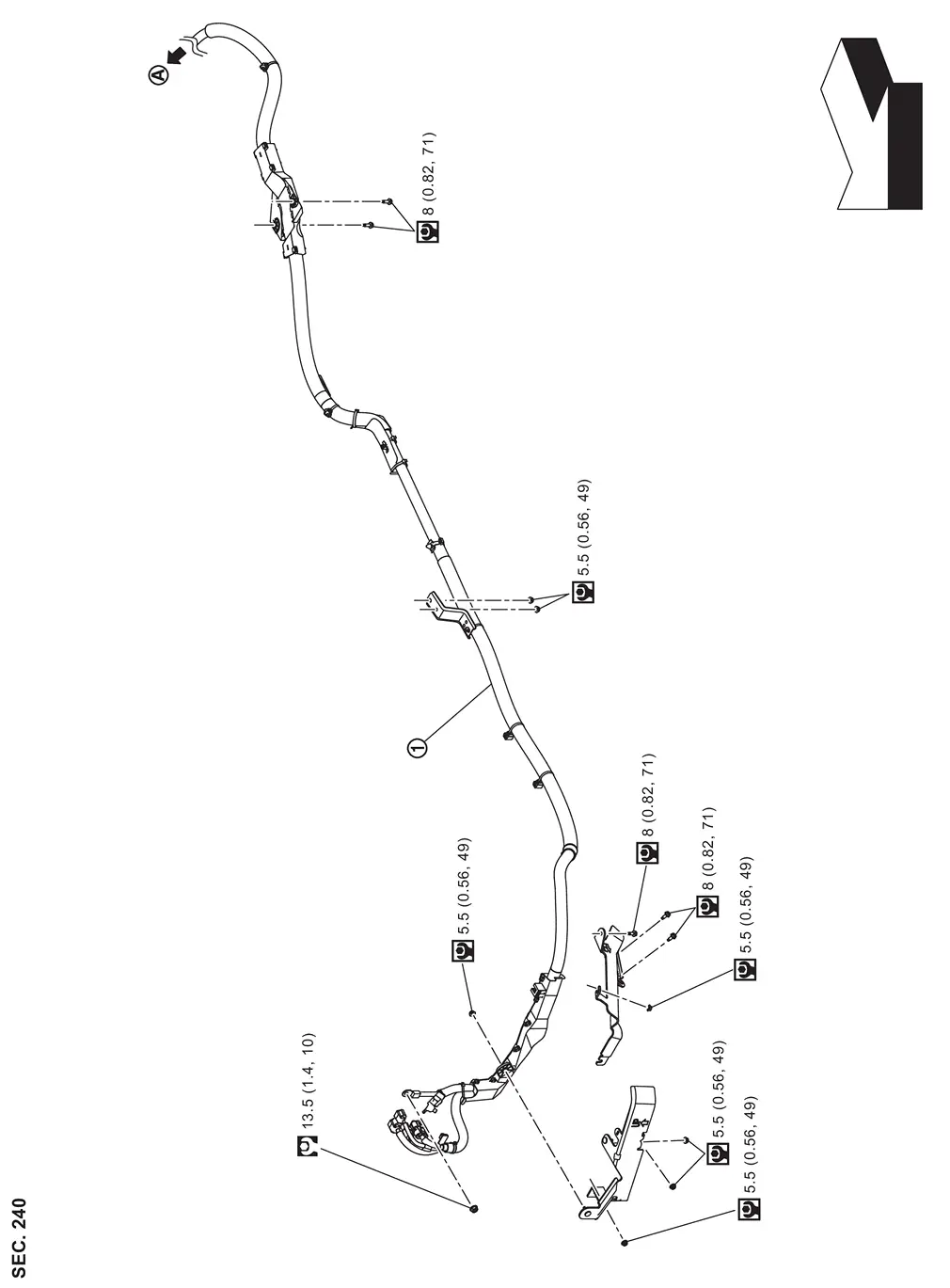

12V SUB BATTERY (LITHIUM ION BATTERY) HARNESS
 | 12V sub battery (lithium ion battery) harness 1 | ||||
 | : To 12V sub battery (lithium ion battery) | ||||
 | : Vehicle front | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||

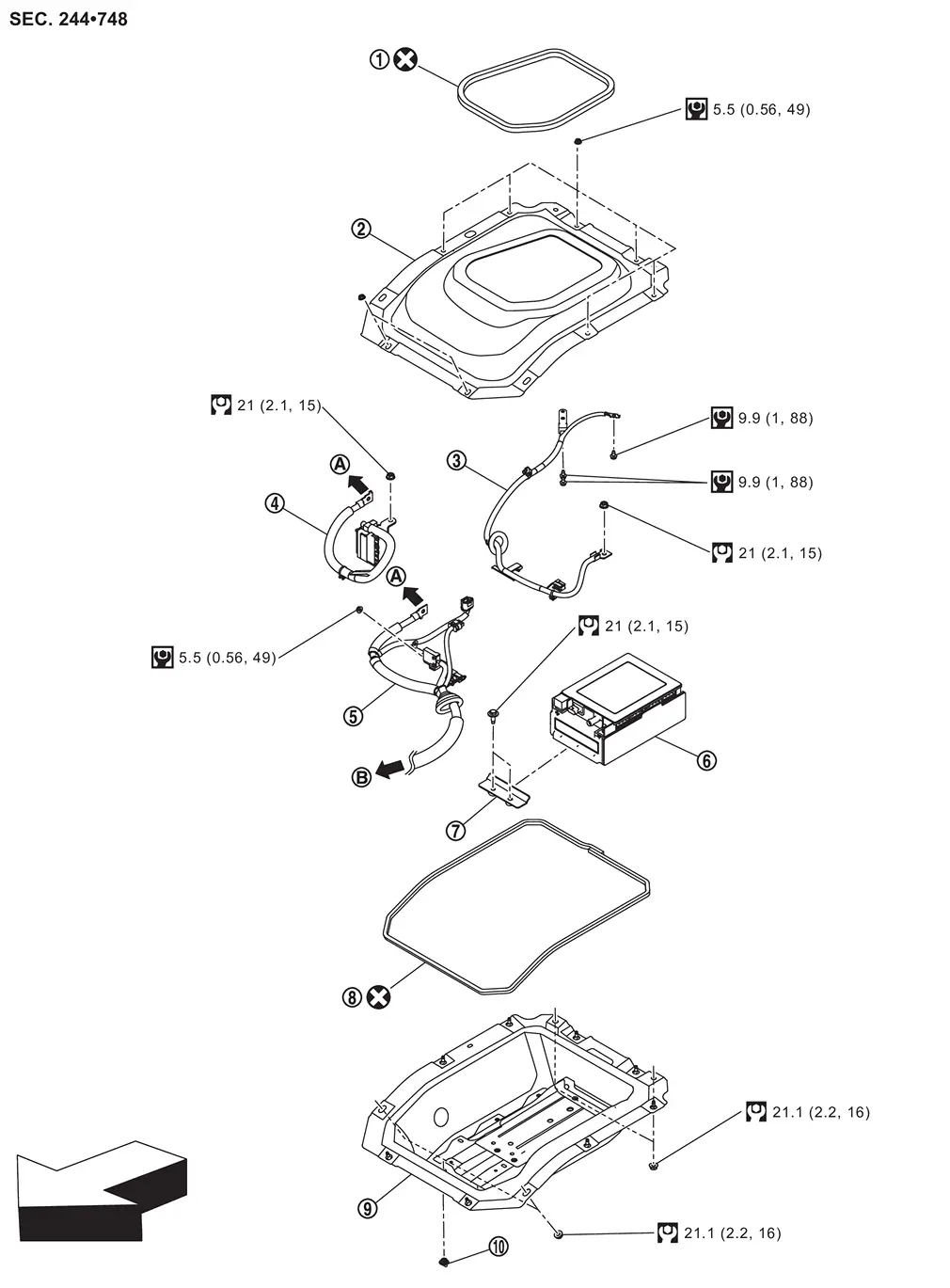

12V SUB BATTERY (LITHIUM ION BATTERY)
| :12V sub battery (lithium ion battery) cover seal |  | :12V sub battery (lithium ion battery) cover |  | :12V sub battery (lithium ion battery) negative cable |
 | :12V sub battery (lithium ion battery) positive cable 2 |  | :12V sub battery (lithium ion battery) positive cable 1 |  | :12V sub battery (lithium ion battery) |
 | :12V sub battery (lithium ion battery) bracket |  | :12V sub battery (lithium ion battery) case seal |  | :12V sub battery (lithium ion battery) case |
 | :Oneway valve | ||||
| :To power network separate relay | ||||
 | :To engine room | ||||
| : Vehicle front | ||||
| : N·m (kg-m, in-lb) | ||||
| : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. | ||||
Removal and Installation
WARNING:
REMOVAL
Disconnect 12V battery cable from negative terminal. Refer to Precautions for Removing Battery Terminal.
CAUTION:
To prevent damage to the parts, disconnect 12V battery cable from ne ...
