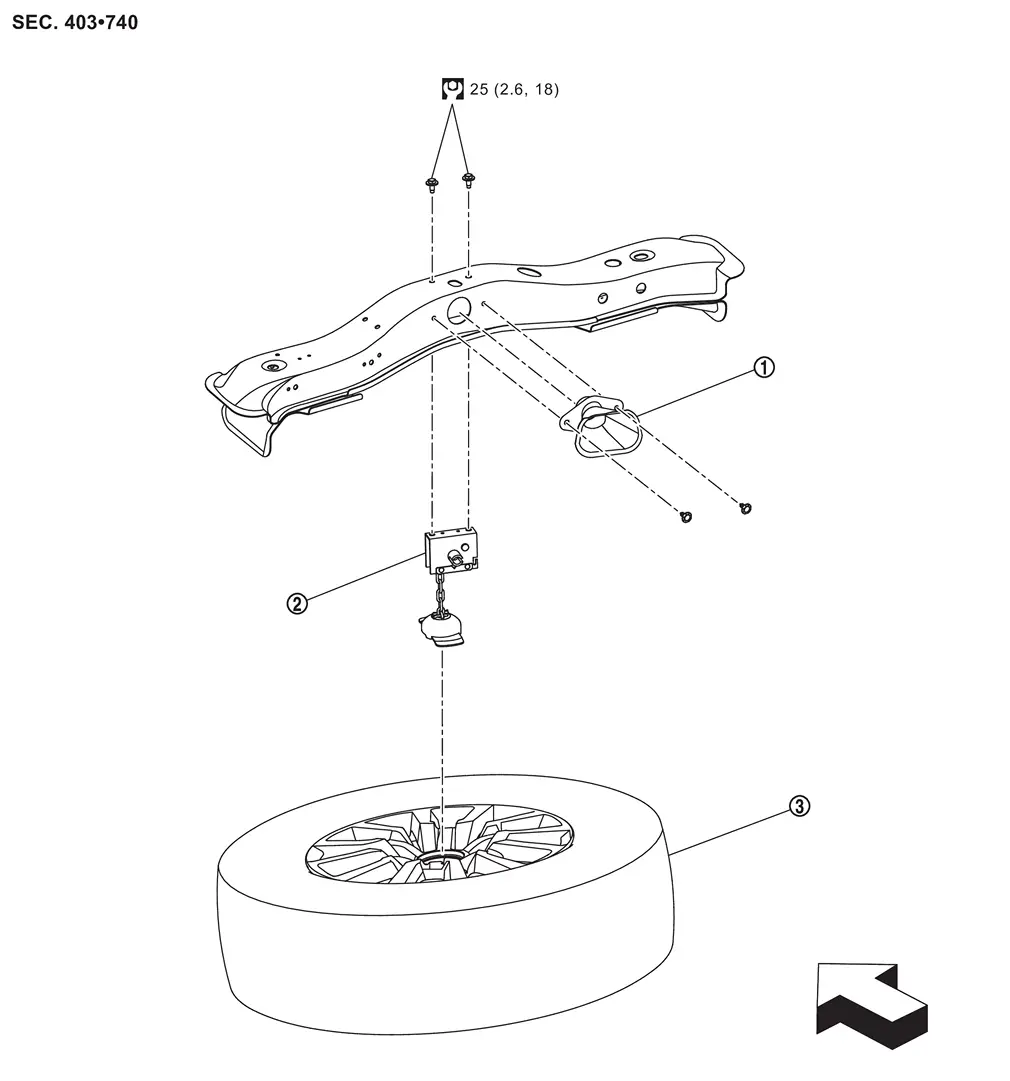

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Handle rod guide |  | Spare wheel carrier assembly |  | Spare tire and wheel assembly |
 | : Vehicle front | ||||
 | : N·m (kg-m, ft-lb) | ||||
Removal & Installation
WARNING:
REMOVAL
Remove the spare tire and wheel assembly from the spare wheel carrier assembly.
Remove the spare wheel carrier assembly mounting bolts, and then remove the spare wheel carrier assembl ...
