Nissan Armada 2025-2026 Service and Repair Manual: Inspection
WARNING:
BRAKE FLUID LEVEL
Check that the brake fluid level in the reservoir tank is within the standard (between MAX − MIN lines).
Visually check for any brake fluid leakage around the reservoir tank.
Check the brake system for any leakage if the fluid level is extremely low (lower than MIN).
Check the brake system for fluid leakage if the warning lamp remains illuminated even after the parking brake is released.
Check the reservoir tank for the mixing of foreign matter (e.g. dust) and oils other than brake fluid.

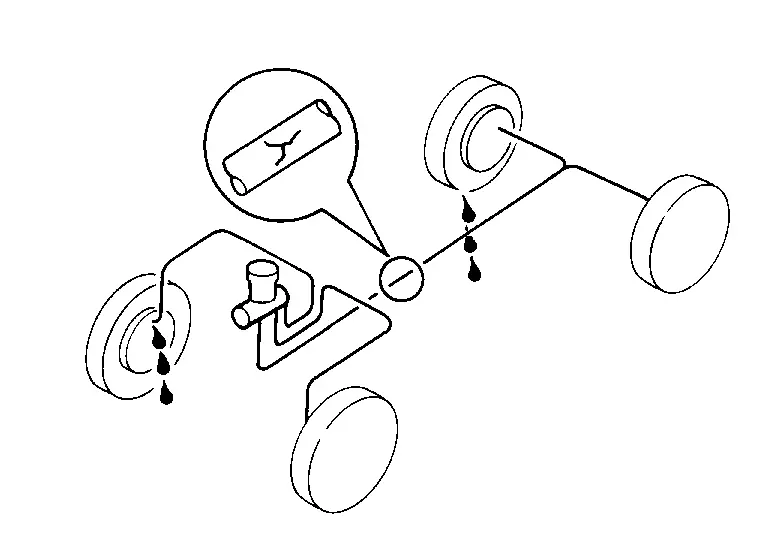

BRAKE LINE
Check brake line (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged parts.
CAUTION:
Brake Fluid
...
Draining
WARNING:
IN CASE REPLACING OR REMOVING AND INSTALLING ELECTRICAL BRAKE CONTROL UNIT
Regarding brake fluid draining, refer to Work Procedure.
IN CASE NOT REPLACING OR REMOVING AND INSTALLING ELECTRICAL ...
