Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

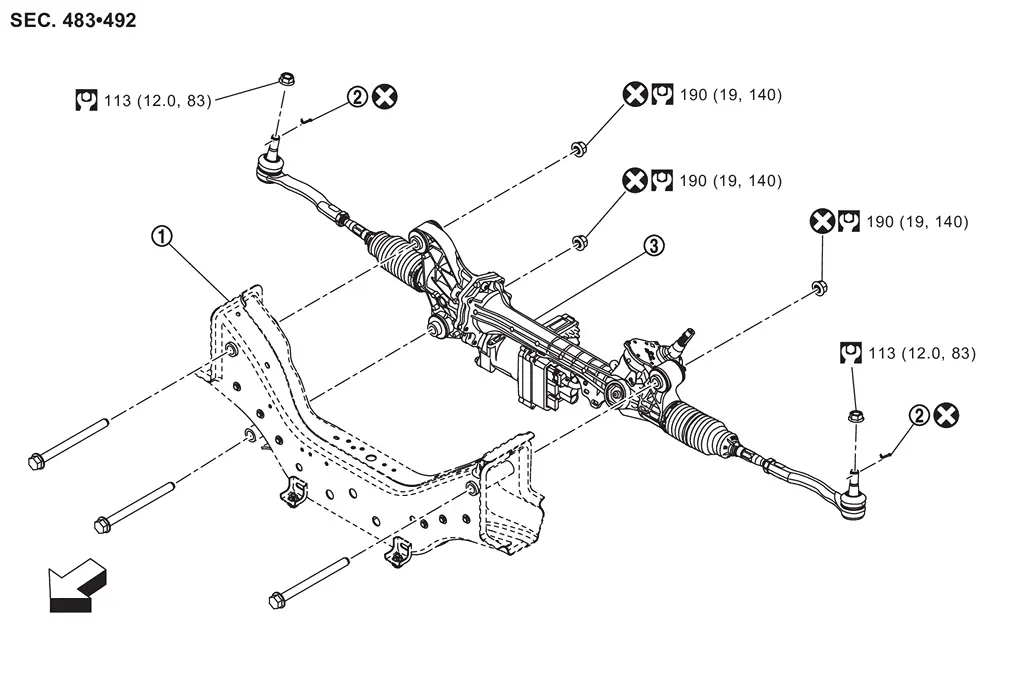

REMOVAL
 | Member |  | Cotter pin |  | Steering gear assembly |
 | : Vehicle front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. | ||||

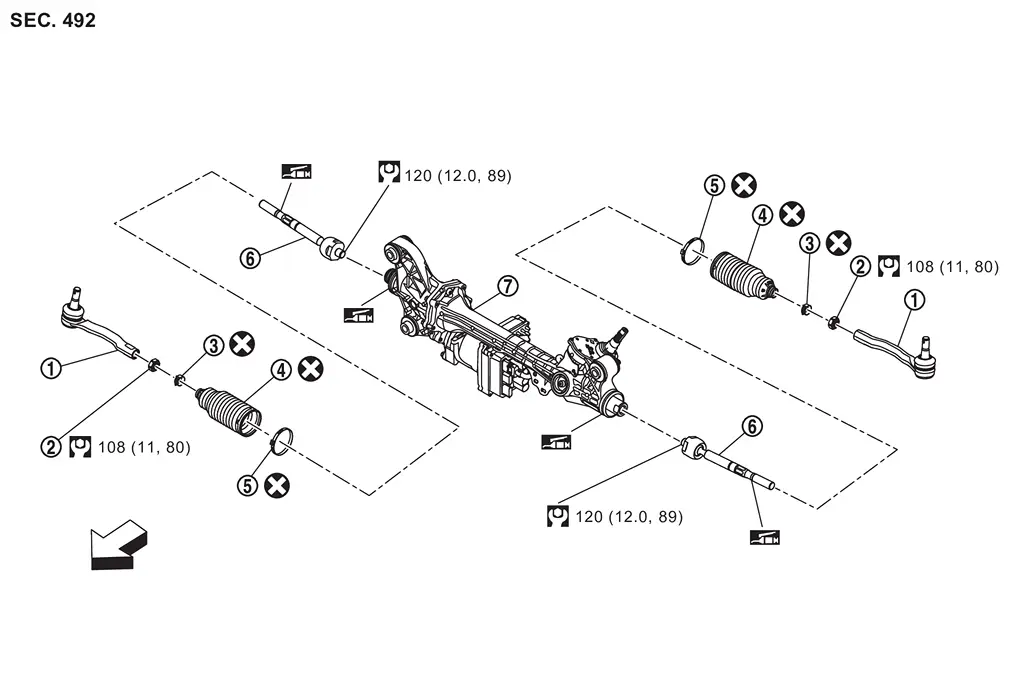

DISASSEMBLY
| Outer socket | | Outer socket lock nut | | Boot clamp (small diameter) |
 | Boot |  | Boot clamp (large diameter) |  | Inner socket |
 | Gear housing assembly | ||||
| : N·m (kg-m, ft-lb) | ||||
 | : Apply RheoGel TEK676. | ||||
| : Always replace after every disassembly. | ||||
| : Vehicle front | ||||
CAUTION:
Never apply the grease to the surface between steering rack and inner socket screw part.
Removal and Installation
WARNING:
CAUTION:
Never disconnect or pull the torque sensor harness and harness connector .
REMOVAL
Set vehicle to the straight-ahead position.
Remove 12V battery terminal. Refer to Removal and Ins ...
