Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

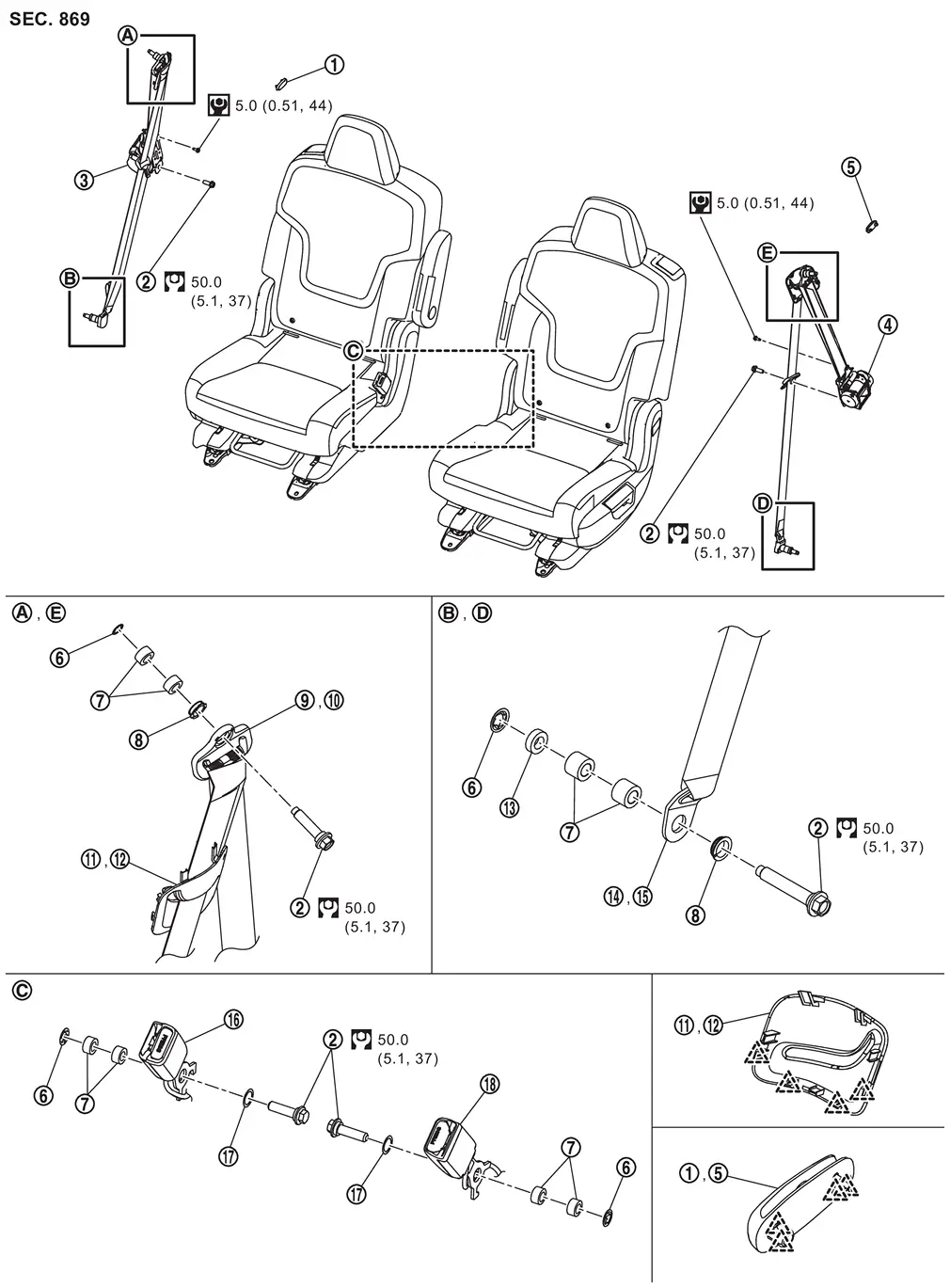

CAPTAIN SEAT
 | Seat belt hook RH |  | Anchor bolt |  | Seat belt pre-tensioner retractor RH |
 | Seat belt pre-tensioner retractor LH |  | Seat belt hook LH |  | Retaining washer |
 | Spacer |  | Bush |  | Shoulder anchor LH |
 | Shoulder anchor RH |  | Seat belt finisher LH |  | Seat belt finisher RH |
 | Collar |  | Anchor plate LH |  | Anchor plate RH |
 | Seat belt buckle RH |  | Plastic washer |  | Seat belt buckle LH |
 | : Pawl | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||

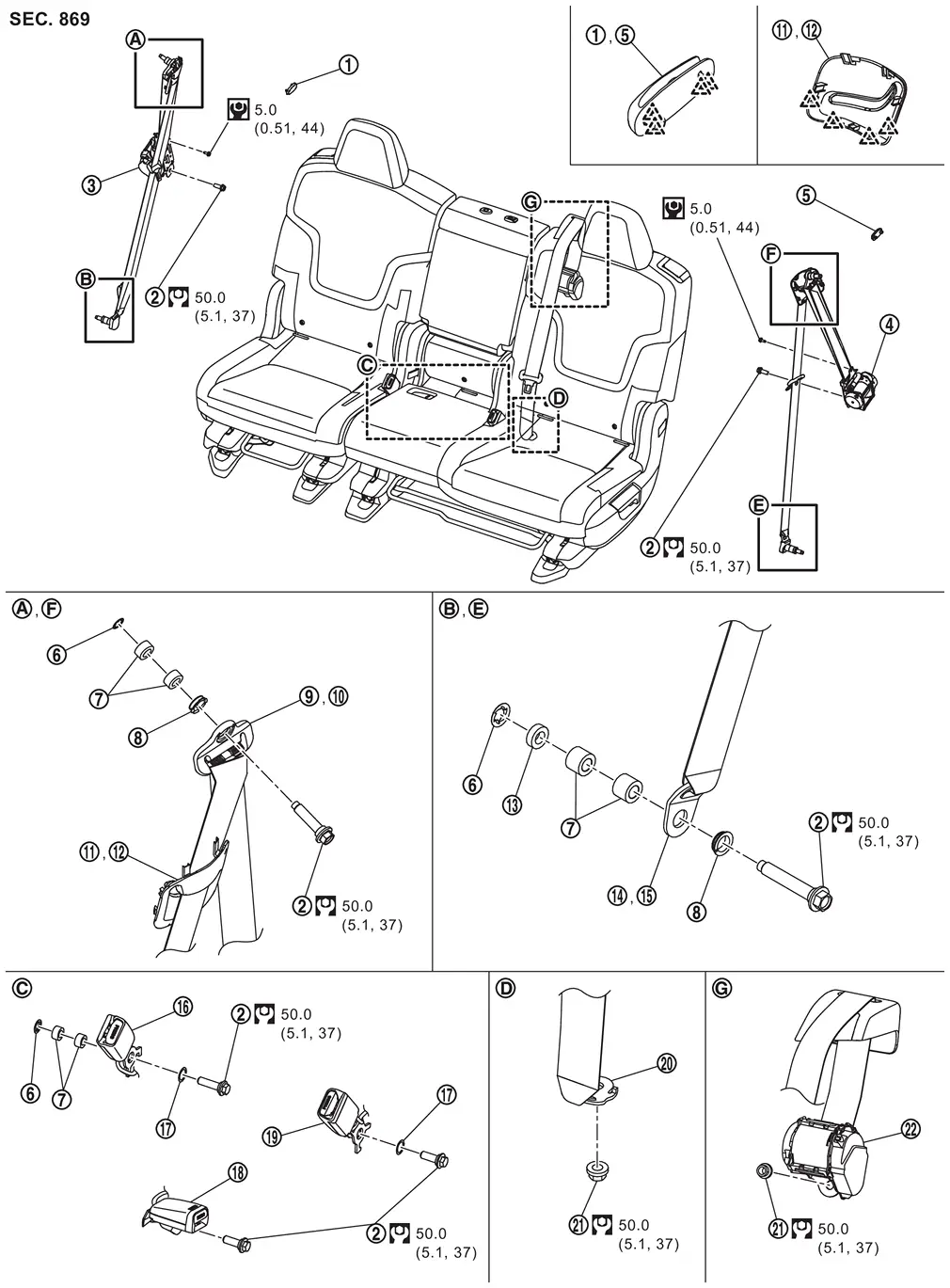

BENCH SEAT
| Seat belt hook RH | | Anchor bolt | | Seat belt pre-tensioner retractor RH |
| Seat belt pre-tensioner retractor LH | | Seat belt hook LH | | Retaining washer |
| Spacer | | Bush | | Shoulder anchor LH |
| Shoulder anchor RH | | Seat belt finisher LH | | Seat belt finisher RH |
| Collar | | Anchor plate LH | | Anchor plate RH |
| Seat belt buckle RH | | Plastic washer | | Center seat belt buckle |
 | Seat belt buckle LH |  | Center anchor plate |  | Anchor nut |
 | Center seat belt retractor | ||||
| : Pawl | ||||
| : N·m (kg-m, in-lb) | ||||
| : N·m (kg-m, ft-lb) | ||||
