Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Restraints / Srs Airbag — Removal and Installation / Passenger Air Bag Module / Exploded View

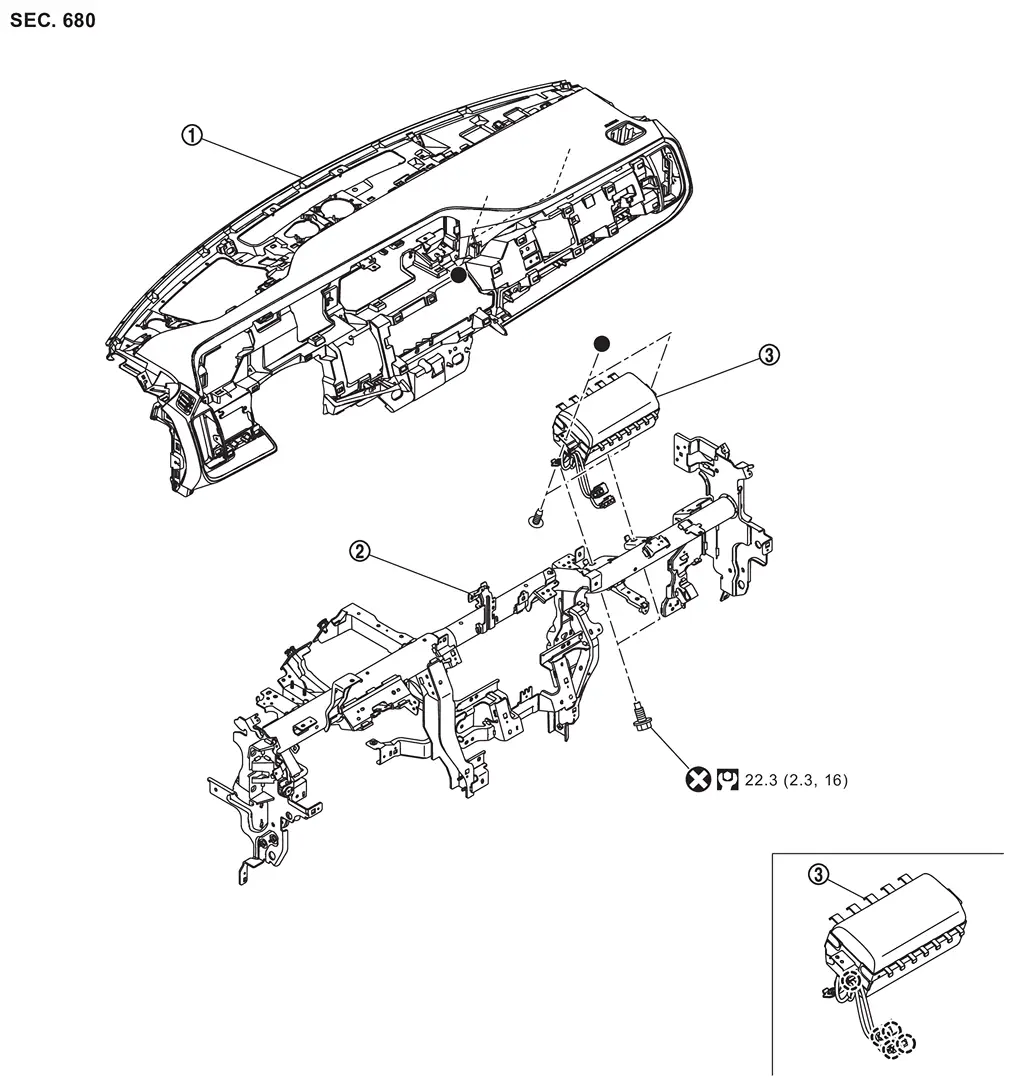

	Instrument panel assembly	Steering member	Passenger air bag module
	: Clip
	: Always replace after every disassembly.
	: N·m (kg-m, ft-lb)
: Indicates that the part is connected at points with same symbol in actual vehicle.

WARNING: Always observe the following items for preventing accidental activation. Always work from the side of air bag module. Never work in front of it. Never use air tools or electric tools for serv ...
