Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
Always observe the following items for preventing accidental activation.
Always work from the side of air bag module. Never work in front of it.
Never use air tools or electric tools for servicing.
REMOVAL
Remove instrument panel assembly from steering member. Refer to Removal and Installation.

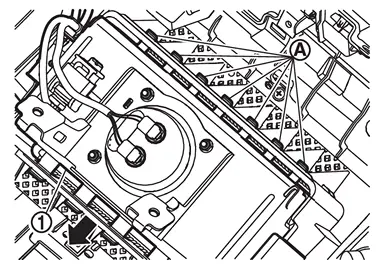

Disengage passenger air bag module harness connectors fixing clips
and
.

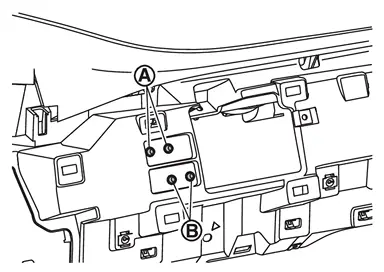

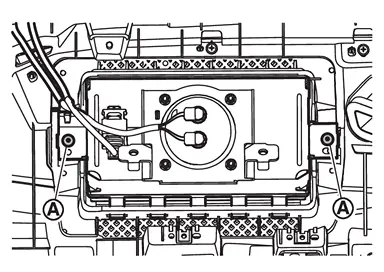

Remove passenger air bag module fixing screws .

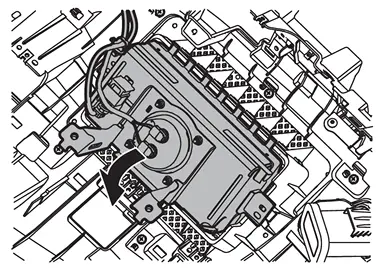

Remove passenger air bag module.Move passenger air bag
according arrow direction as shown in figure, and then disengage fixing hooks .
CAUTION:
To prevent accidental explosion, always place the passenger air bag module with deploying direction facing upward.
: Upward To prevent damage to the parts, never impact the passenger air bag module.
Replace passenger air bag module if it is dropped or sustains an impact.
To prevent accidental explosion, never insert any foreign objects (screwdriver, etc.) into the passenger air bag module.
To prevent accidental explosion, never disassemble the passenger air bag module.
To prevent accidental explosion, never expose the passenger air bag module to temperature of more than 90 °C (194 °F).
To prevent damage to the parts, never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Never reuse mounting bolts after removal, replace with new bolts.
Never damage the harness while installing.
Exploded View
Instrument panel assembly Steering member Passenger air bag module : Clip : Always replace after every disassembly. : N·m (kg-m, ft-lb) : Indicates that the part is connected at points with sa ...
