REMOVAL

Remove front fillet molding fixing screws .

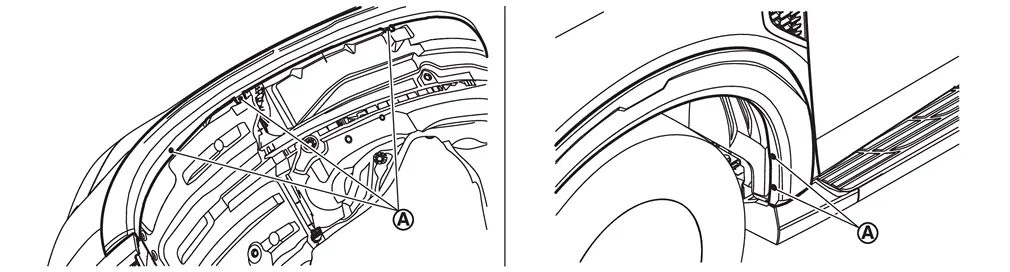

Apply protective tape (A) on the part to protect it from damage.

Disengage front fillet molding fixing pawl indicated by arrows as shown in the figure.

: Pawl

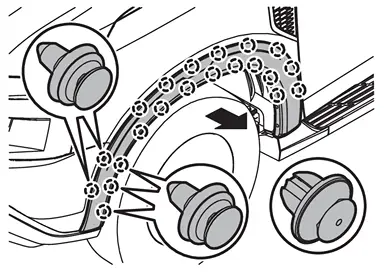

Disengage fixing clips, and then remove front fillet molding indicated by arrows as shown in the figure.

: Clip

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Always replace double-sided tape with a new one, if front fillet molding is reused.

Remove double-sided tape remaining on front fender panel and back of front fillet molding with a double-sided tape remover, after removing front fillet molding.

Degrease front fillet molding mounting surface of front fender panel.

Paint grain or dust on mounting surface of front fillet molding may spoil exterior appearance if it remains. Clean the mounting surface and check that no paint grain or dust remains, before starting the operation.

When installing front fillet molding, visually check the clips, then replace it with new parts if they are damaged.

When installing front fillet molding, check that clips are securely fitted in fender panel holes, and then press it in.

Never wash the vehicle within 24 hours after installing so as to keep adhesive.

Front Fillet Molding

...

Rear Fillet Molding Front

...
