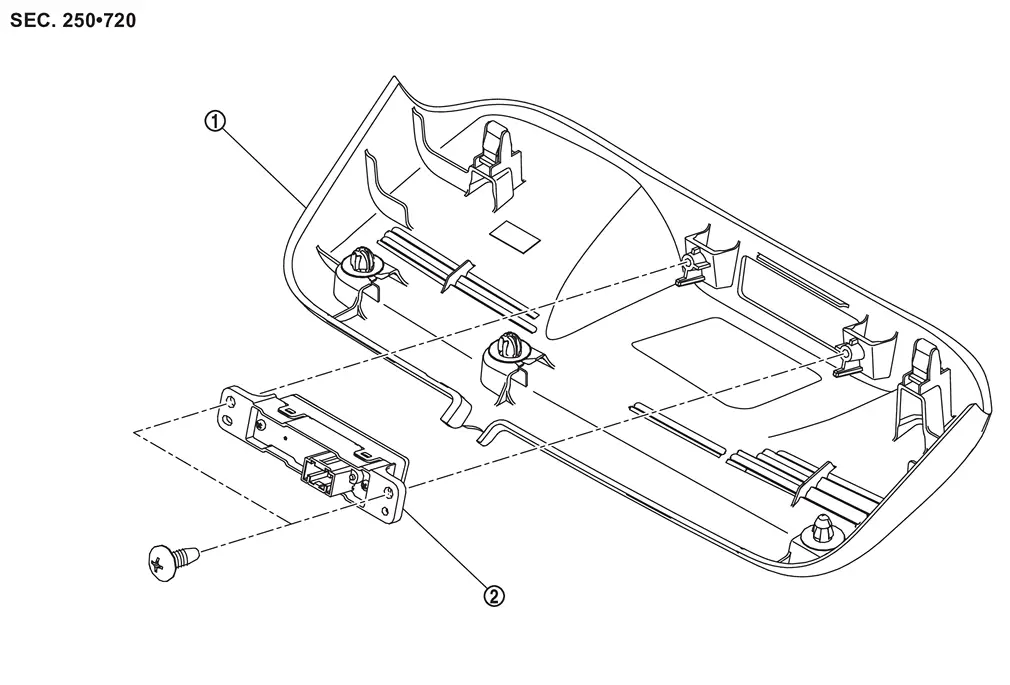

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Indicator Unit

...

Removal and Installation

REMOVAL Remove cover. Refer to Removal and Installation. Remove indicator unit fixing screws , and then remove indicator unit. INSTALLATION Install in the reverse order of removal. ...
