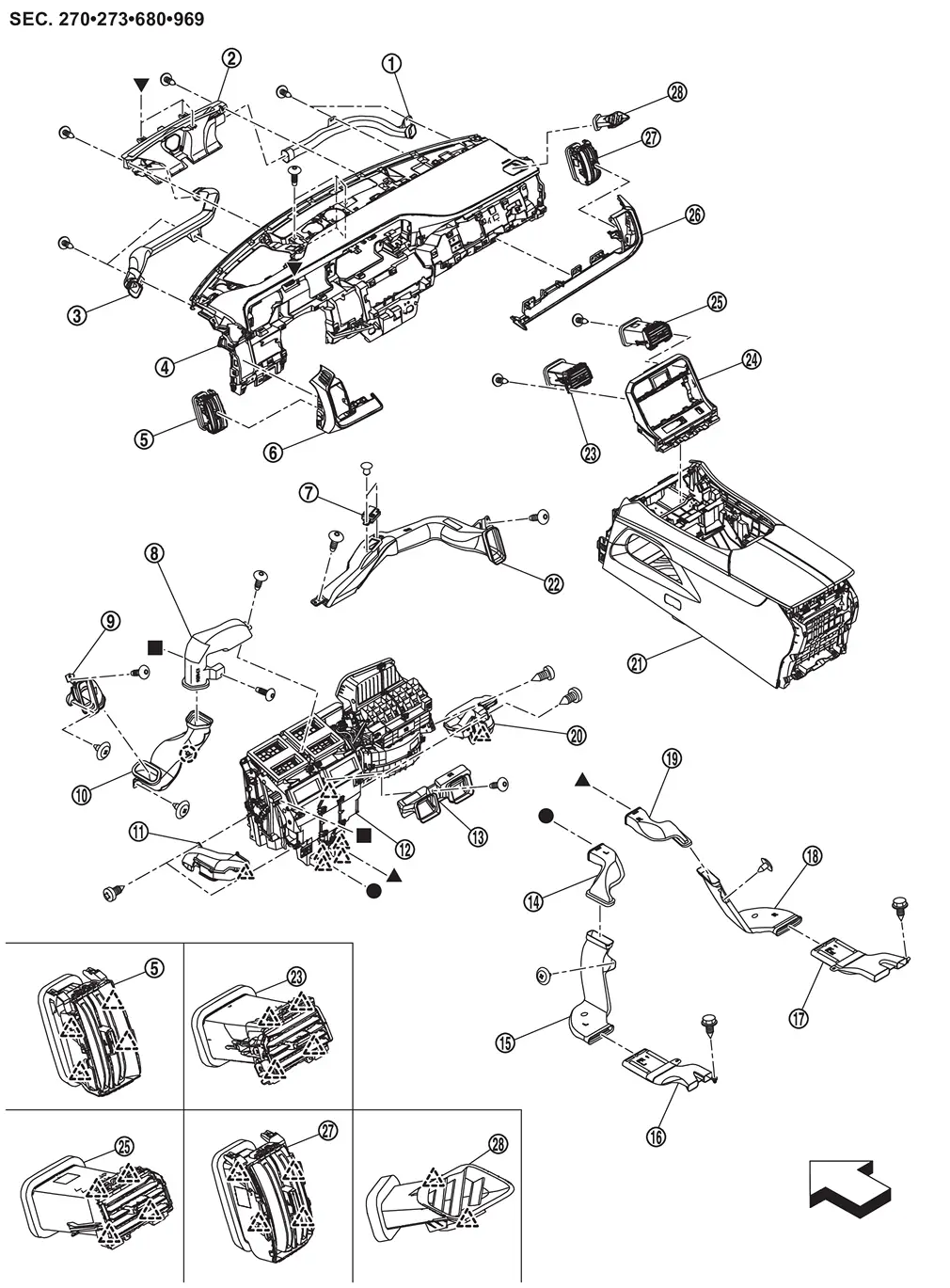

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Side defroster nozzle RH |  | Center defroster nozzle |  | Side defroster nozzle LH |
 | Instrument panel assembly |  | Side ventilator grille LH |  | Instrument finisher A |
 | Ionizer (with ionizer models) |  | Side ventilator duct 1 LH |  | Side ventilator duct 3 LH |
 | Side ventilator duct 2 LH |  | Front foot duct LH |  | Front A/C unit assembly |
 | Center ventilator duct |  | Rear floor duct 1 LH |  | Rear floor duct 2 LH |
 | Rear floor duct 3 LH |  | Rear floor duct 3 RH |  | Rear floor duct 2 RH |
 | Rear floor duct 1 RH |  | Front foot duct RH |  | Front center console assembly |
 | Side ventilator duct RH |  | Center ventilator grille LH |  | Front center console switch finisher assembly |
 | Center ventilator grille RH |  | Instrument finisher B |  | Side ventilator grille RH |
 | Side defroster grille | ||||
 | : Clip | ||||
 | : Pawl | ||||
 | : Vehicle front | ||||
 ,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
