Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

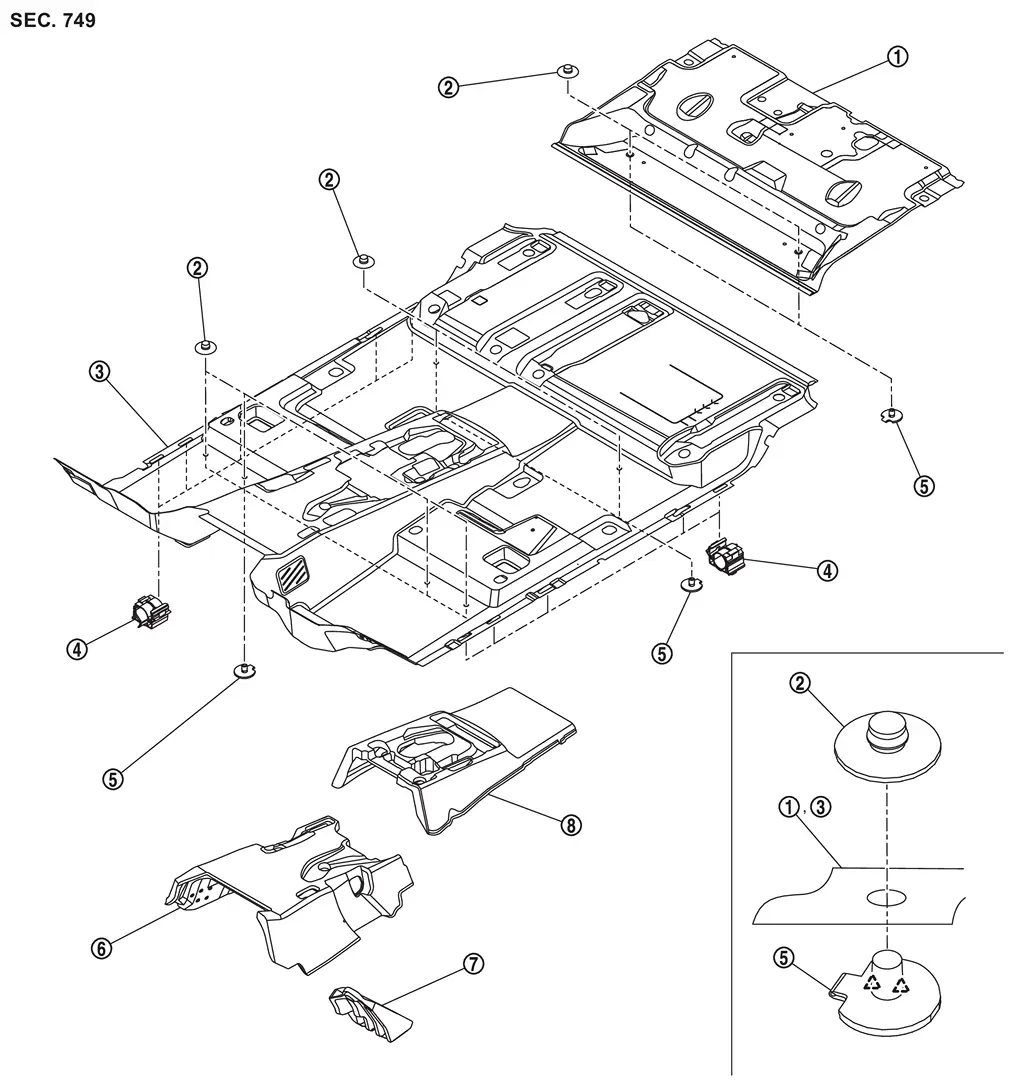

For Second Bench Seat
 | Rear floor carpet |  | Carpet hook |  | Front floor carpet |
 | Harness clip |  | Base |  | Front floor center spacer |
 | Footrest |  | Front floor rear spacer | ||
 | : Pawl | ||||

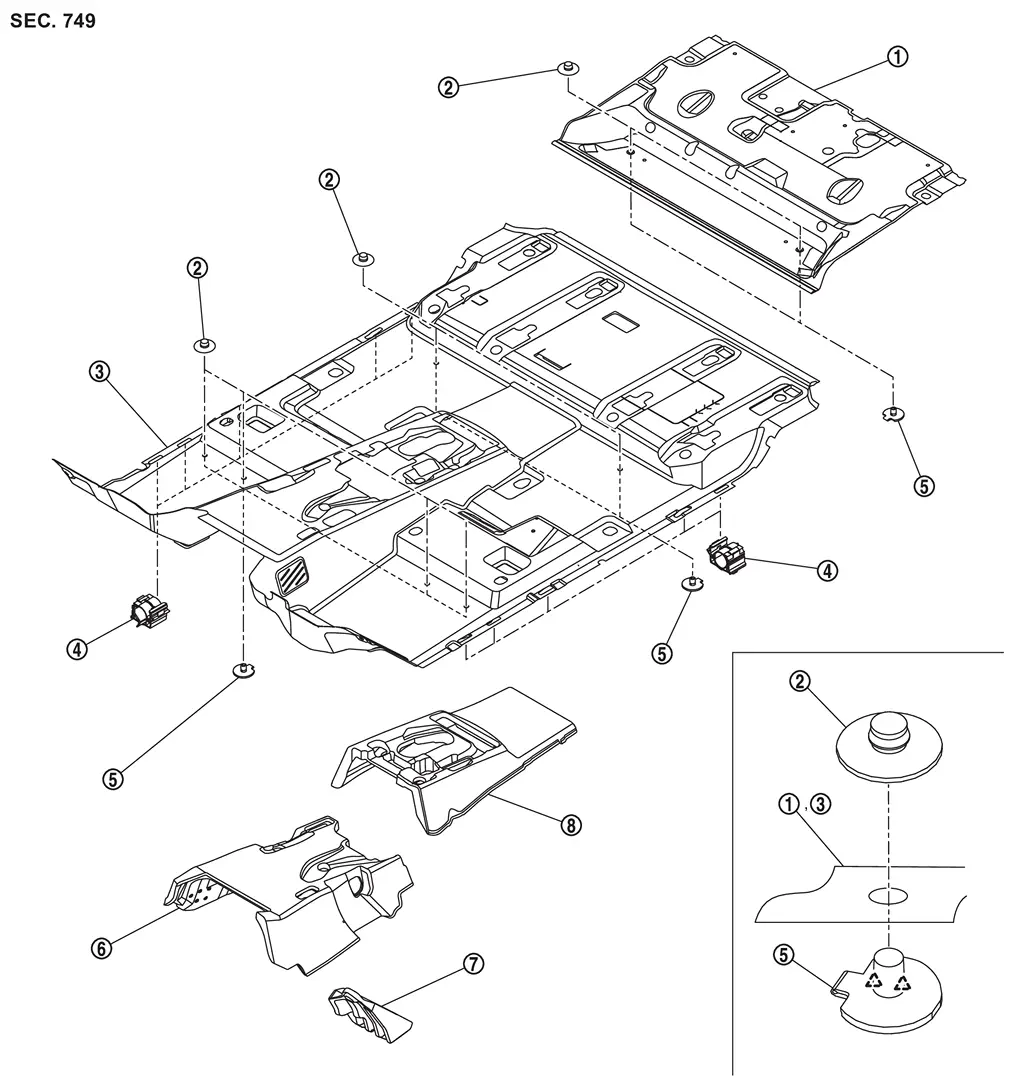

For Second Captain Seat
| Rear floor carpet | | Carpet hook | | Front floor carpet |
| Harness clip | | Base | | Front floor center spacer |
| Footrest | | Front floor rear spacer | ||
| : Pawl | ||||
