Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
CAUTION:
Oil filter is provided with relief valve. Use genuine NISSAN oil filter or equivalent.
Never get burned when engine and engine oil may be hot.
When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
Never allow engine oil to adhere to drive belt.
Completely wipe off any engine oil that adheres to engine and vehicle.
NOTE:
"It is recommended to use a Genuine NISSAN oil filter or equivalent. The use of parts that do not meet or exceed NISSAN specifications may cause damage to the vehicle, and have an effect on warranty coverage. Always check with the Parts Department for the latest parts information".

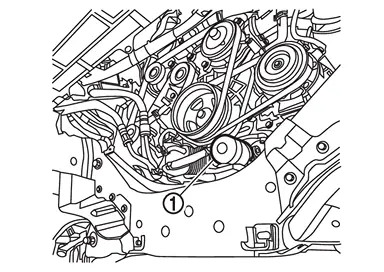

Using oil filter wrench [SST: KV10115801 (NI-38956)] , remove oil filter
.
INSTALLATION
Remove foreign materials adhering to oil filter installation surface.

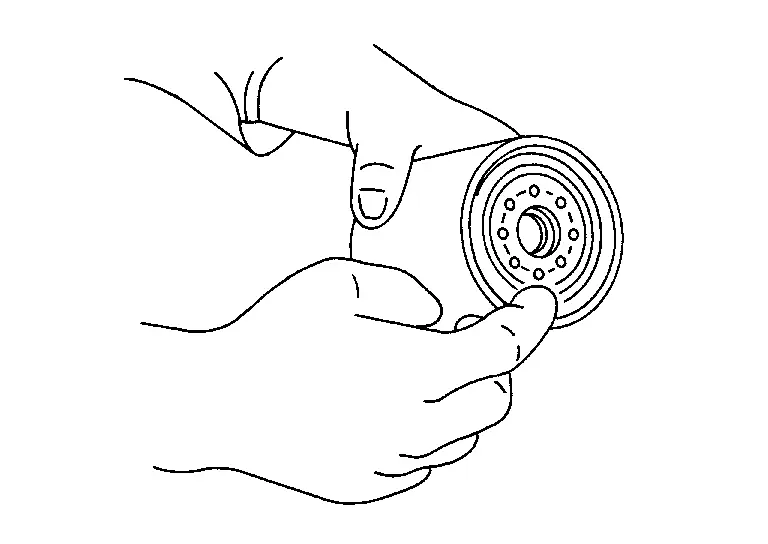

Apply engine oil to the oil seal contact surface of new oil filter.

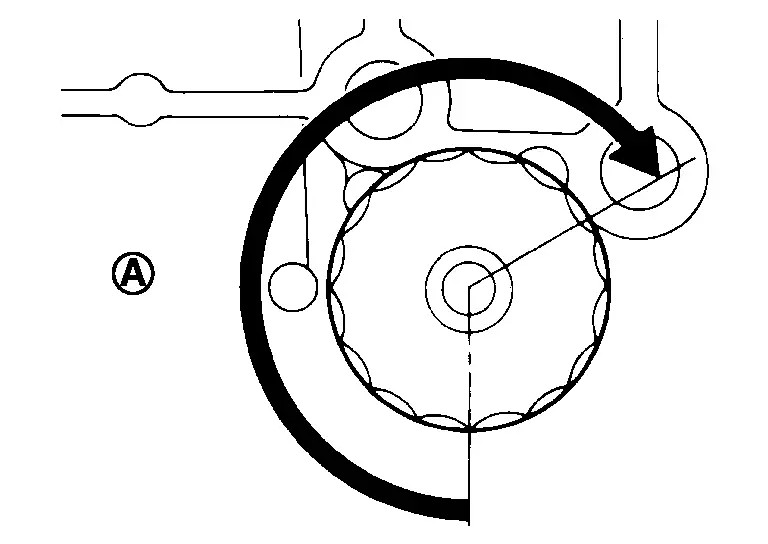

Screw oil filter manually until it touches the installation surface, then tighten it by 2/3 turn
. Or tighten to the specification.
| Oil filter: | |
 : 17.7 N·m (1.8 kg-m, 13 ft-lb) | |
Oil Filter
...
Inspection
WARNING:
INSPECTION AFTER INSTALLATION
Check the engine oil level. Refer to Inspection.
Start the engine, and check there is no leak of engine oil.
Stop the engine and wait for 10 minutes.
Check the e ...
