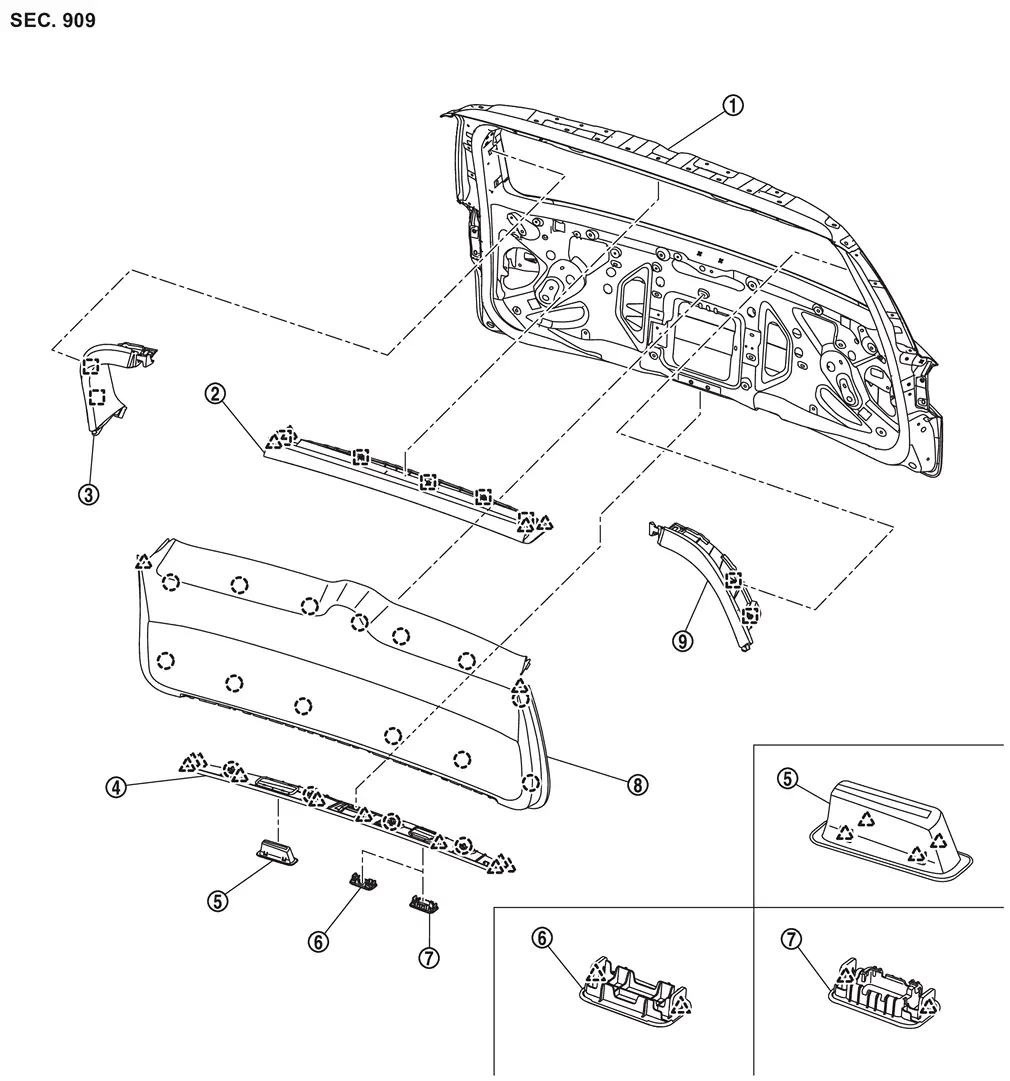

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Back door panel |  | Back door upper garnish |  | Back door side garnish RH |
 | Back door lower finisher |  | Back door pull handle |  | Back door finisher cap*1 |
 | Automatic back door switch finisher*2 |  | Back door inner finisher |  | Back door side garnish LH |
 | : Clip | ||||
 | : Pawl | ||||
 | : Metal clip | ||||
*1: Without automatic back door system models
*2: With automatic back door system models
Back Door Trim
...
