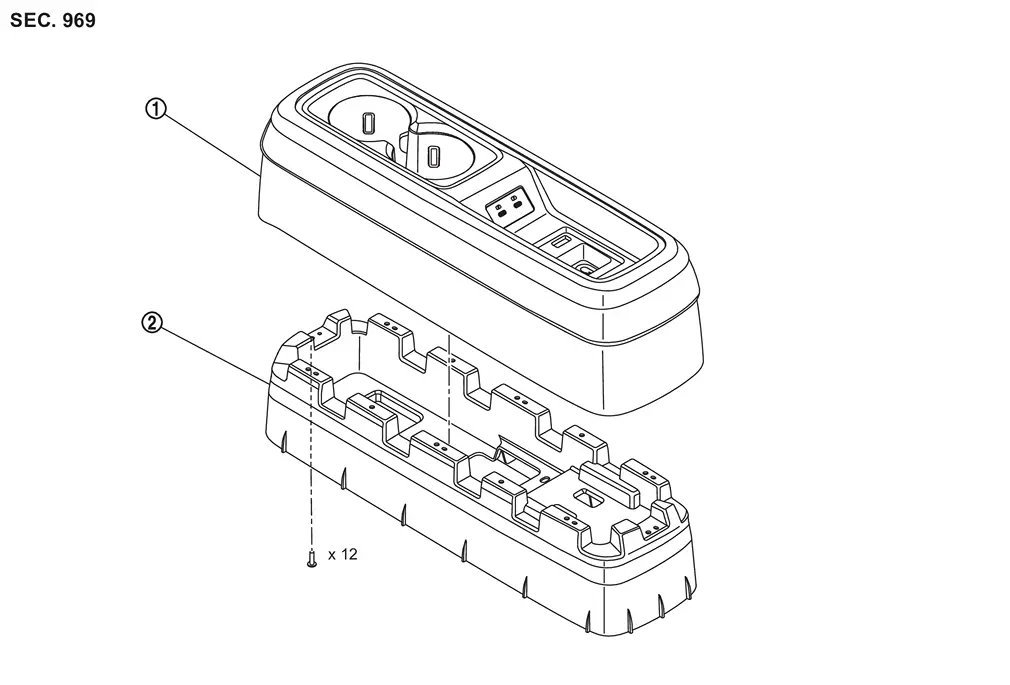

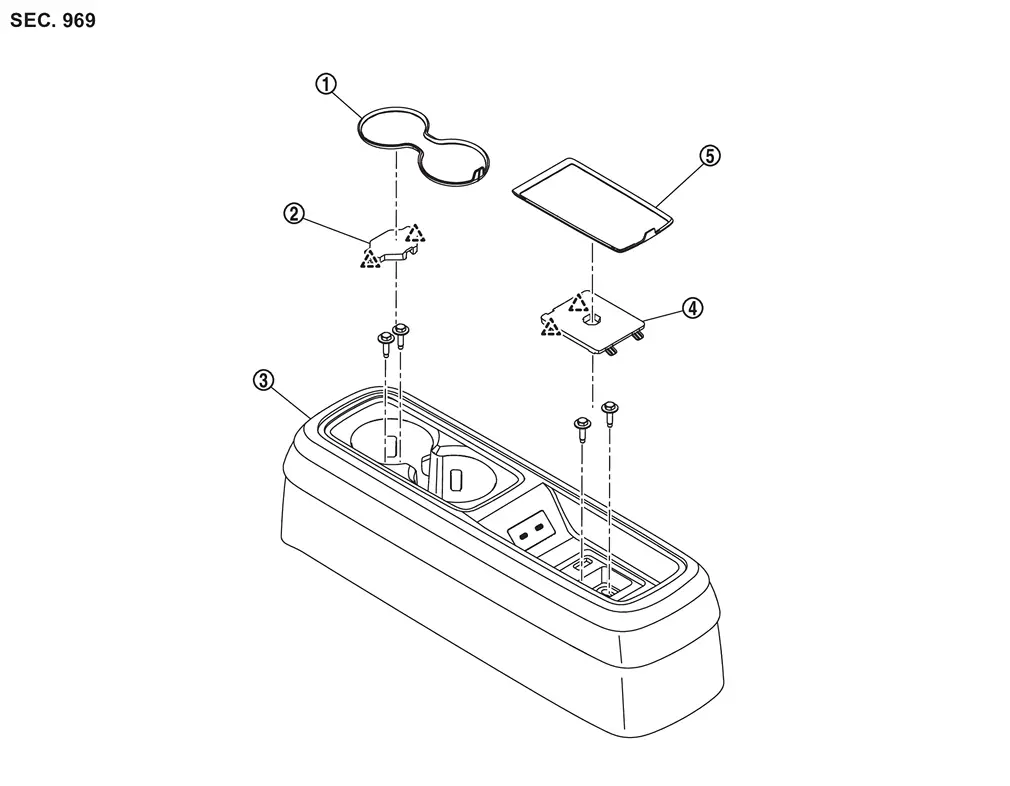

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Rear Center Console Assembly

...

Removal and Installation

REMOVAL CAUTION: When removing, always use a remover tool that is made of plastic. Remove rear center tray cup holder mat and rear center pocket mat. Remove rear center tray front mask.Apply protectiv ...
