Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
When removing, always use a remover tool that is made of plastic.
Remove rear center tray cup holder mat and rear center pocket mat.

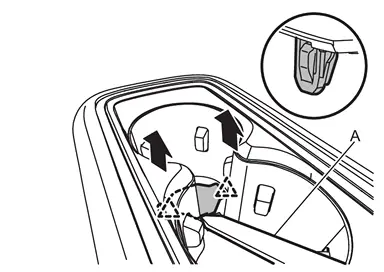

Remove rear center tray front mask.Apply protective tape (A) on the part to protect it from damage.
 | : Pawl |

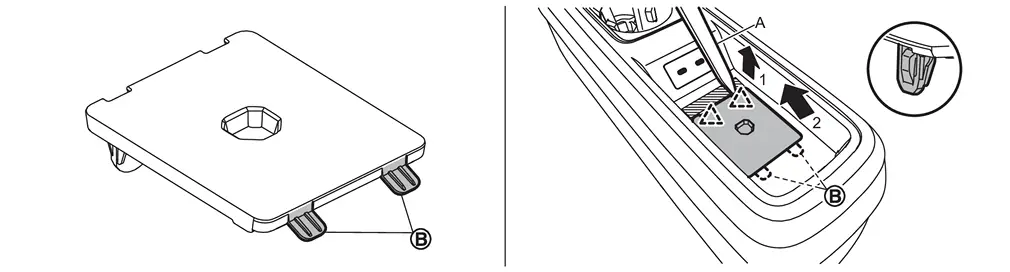

Remove rear center tray rear mask.Apply protective tape (A) on the part to protect it from damage.
using a remover tool (A) according to numerical order 1→2 indicated by arrows as shown in the figure, and then remove rear center tray rear mask.
| : Pawl |
Remove rear center tray assembly.Remove rear center tray assembly mounting bolts. Disconnect harness connector, and then remove rear center tray assembly.
INSTALLATION
Install in the reverse order of removal.
Exploded View
REMOVAL
Rear center tray cup holder mat Rear center tray front mask Rear center tray assembly Rear center tray rear mask Rear center pocket mat : Pawl
DISASSEMBLY
Rear center tray assembly ...
Disassembly and Assembly
DISASSEMBLY
CAUTION:
When disassemble, always use a remover tool that is made of plastic.
Disengage harness fixing clip.
Remove fixing screws, and then remove rear center tray reinforcement.
ASSEMBLY
...
