Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

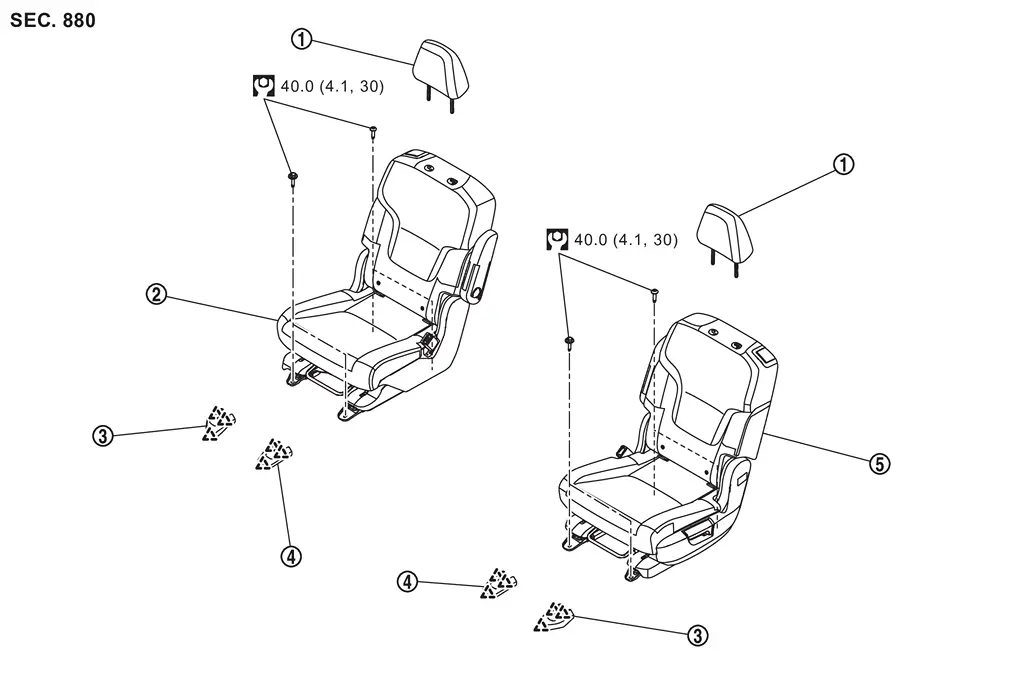

REMOVAL
 | Headrest |  | Second seat assembly (RH seat) |  | Outside seat leg cover |
 | Inside seat leg cover |  | Second seat assembly (LH seat) | ||
 | : Pawl | ||||
 | : N·m (kg-m, ft-lb) | ||||
DISASSEMBLY

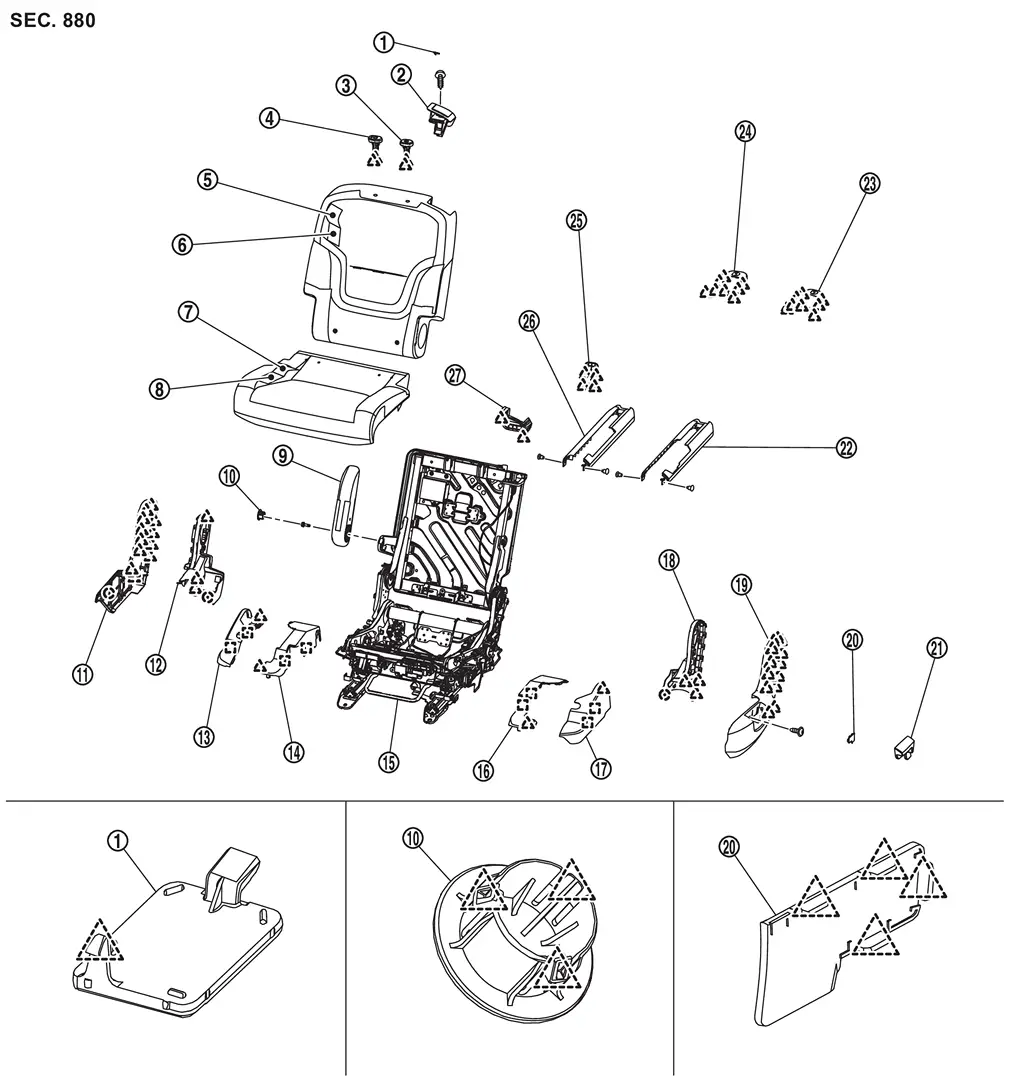

LH Seat
| Seatback lever unit cap | | Seatback lever unit | | Headrest holder (lock) |
| Headrest holder (free) | | Seatback trim |  | Seatback pad |
 | Seat cushion trim |  | Seat cushion pad |  | Armrest |
 | Armrest cover |  | Inside seat cushion finisher outer |  | Inside seat cushion finisher inner |
 | Inside seat cushion lower cover outer |  | Inside seat cushion lower cover inner |  | Seat frame assembly |
 | Outside seat cushion lower cover inner |  | Outside seat cushion lower cover outer |  | Outside seat cushion finisher inner |
 | Outside seat cushion finisher outer |  | Reclining knob cap |  | Reclining knob |
 | Outside slide finisher |  | Outside striker cover |  | Inside striker cover |
 | Tether anchor finisher |  | Inside slide finisher |  | Seatback lever unit escutcheon |
 | : Clip | ||||
| : Pawl | ||||
 | : Metal clip | ||||

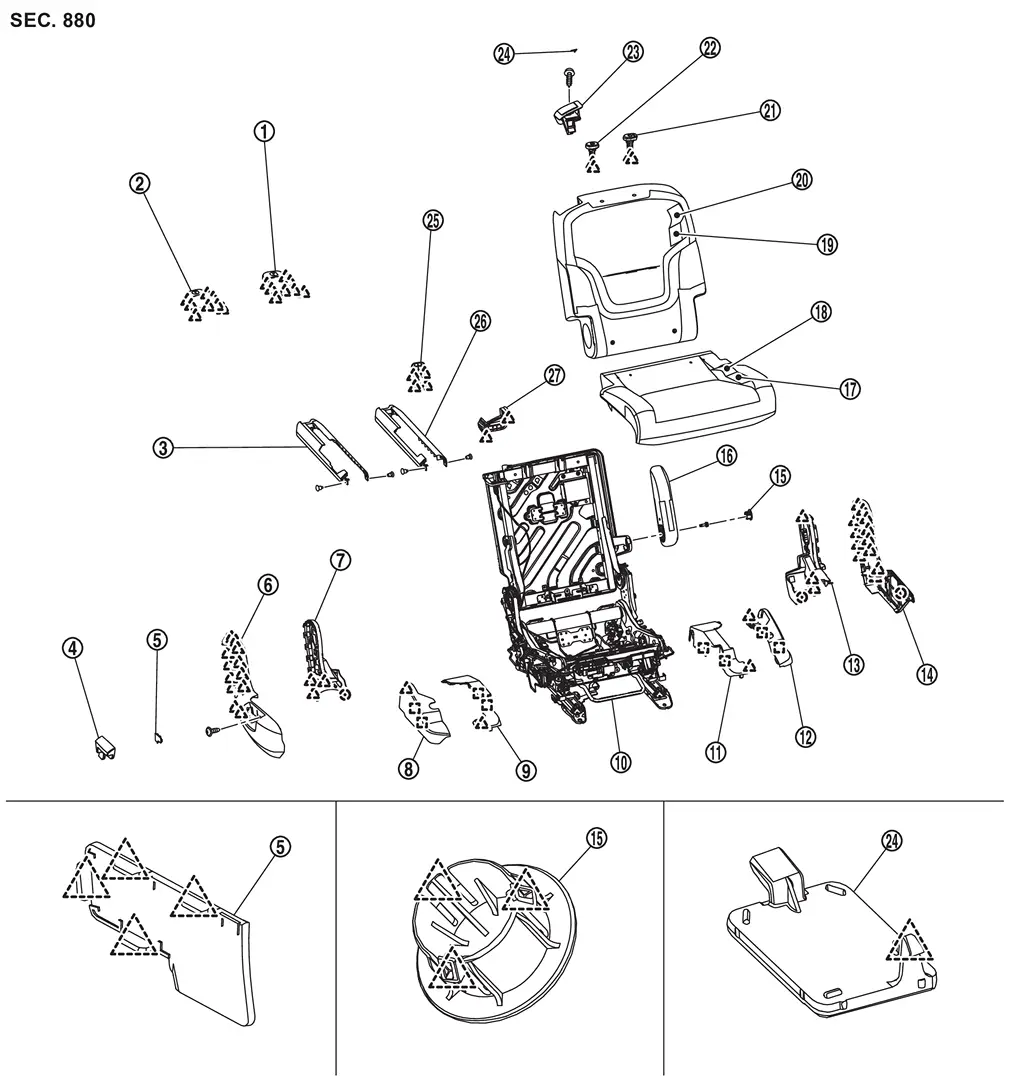

RH seat
| Inside striker cover | | Outside striker cover | | Outside slide finisher |
| Reclining knob | | Reclining knob cap | | Outside seat cushion finisher outer |
| Outside seat cushion finisher inner | | Outside seat cushion lower cover outer | | Outside seat cushion lower cover inner |
| Seat frame assembly | | Inside seat cushion lower cover inner | | Inside seat cushion lower cover outer |
| Inside seat cushion finisher inner | | Inside seat cushion finisher outer | | Armrest cover |
| Armrest | | Seat cushion pad | | Seat cushion trim |
| Seatback pad | | Seatback trim | | Headrest holder (lock) |
| Headrest holder (free) | | Seatback lever unit | | Seatback lever unit cap |
| Tether anchor finisher | | Inside slide finisher | | Seatback lever unit escutcheon |
| : Clip | ||||
| : Pawl | ||||
| : Metal clip | ||||
Removal and Installation
CAUTION:
Always work with 2 workers, because it is heavy weight.
REMOVAL
Remove headrest.
Slide second seat to front most position.
Remove rear side mounting bolts of second seat assembly.
Slide seco ...
