Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Always work with 2 workers, because it is heavy weight.
REMOVAL
Remove headrest.
Slide second seat to front most position.
Remove rear side mounting bolts of second seat assembly.
Slide second seat to rear most position.

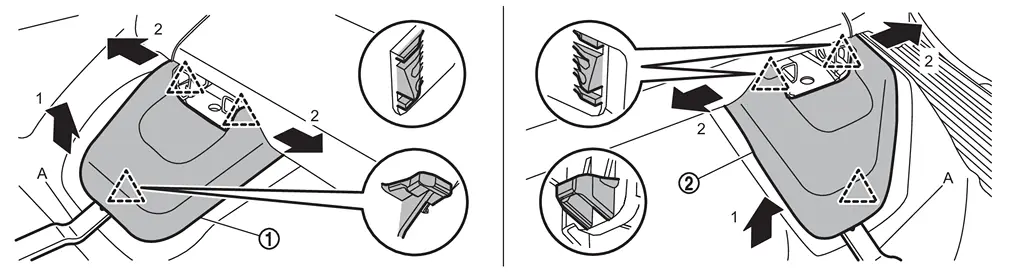

Disengage fixing pawls using a remover tool (A) according to numerical order 1→2 indicated by arrows as shown in the figure, and then remove inside seat leg cover
and outside seat leg cover
.
 | : Pawl |
Remove front side mounting bolts of second seat assembly.
Pull up second seat to rearward.
Disengage body harness fixing clip, and then disconnect harness connector.
CAUTION:
Remove second seat assembly from vehicle.
NOTE:
If disassemble second seat after removing, move second seat to walk in condition to ensure the workspace for disassembling seat cushion finisher.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Before installing seat to vehicle, check slide rail locking position which inner and outer side. They should be locking same position.
When installing, tighten mounting bolts according to numerical order 1→4 as shown in the figure. (Figure indicate LH seat, RH seat is symmetrical.)
Tighten seat mounting bolts to the specified torque. Refer to Exploded View.
Exploded View
REMOVAL
Headrest Second seat assembly (RH seat) Outside seat leg cover Inside seat leg cover Second seat assembly (LH seat) : Pawl : N·m (kg-m, ft-lb)
DISASSEMBLY
LH Seat
Seatback lever ...
Second Seatback
...
