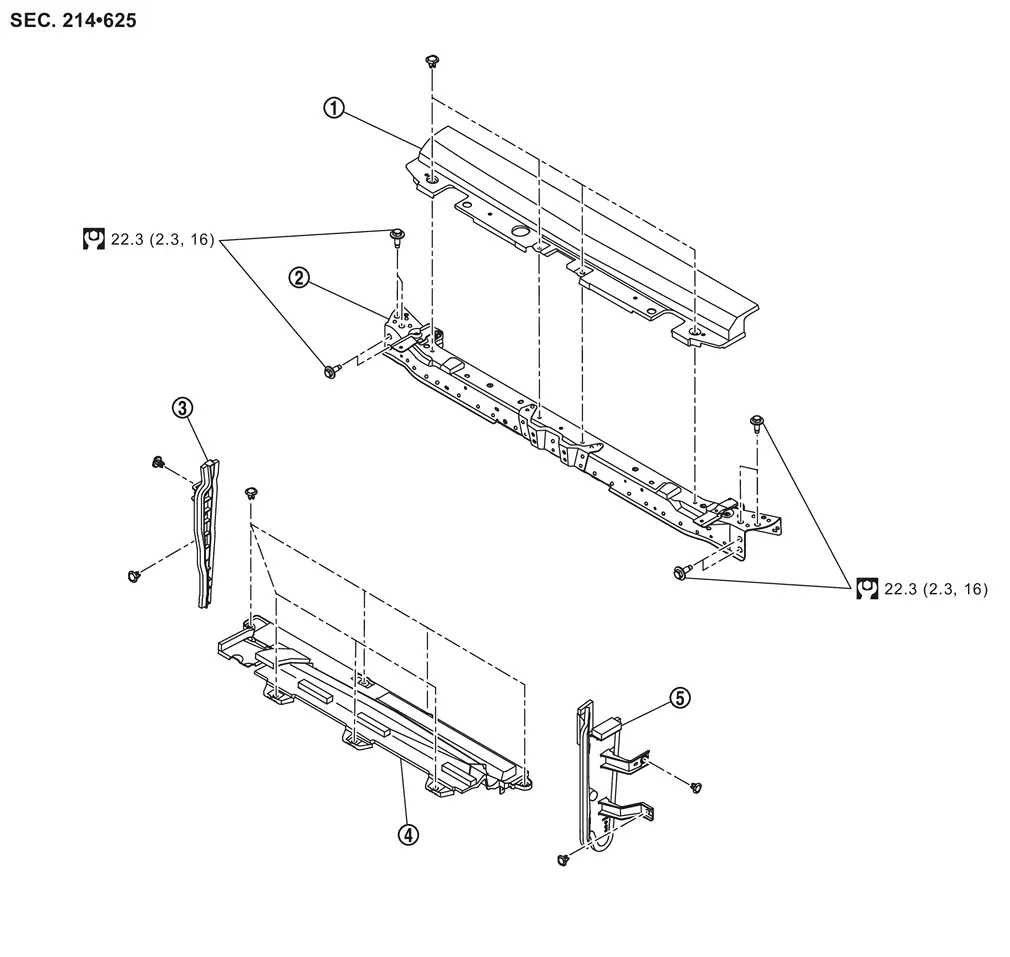

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Radiator air guide upper |  | Radiator core support |  | Radiator air guide RH |
 | Radiator air guide lower |  | Radiator air guide LH | ||
 | : N·m (kg-m, ft-lb) | ||||
