Nissan Armada 2025-2026 Service and Repair Manual: Passenger Compartment
WARNING:

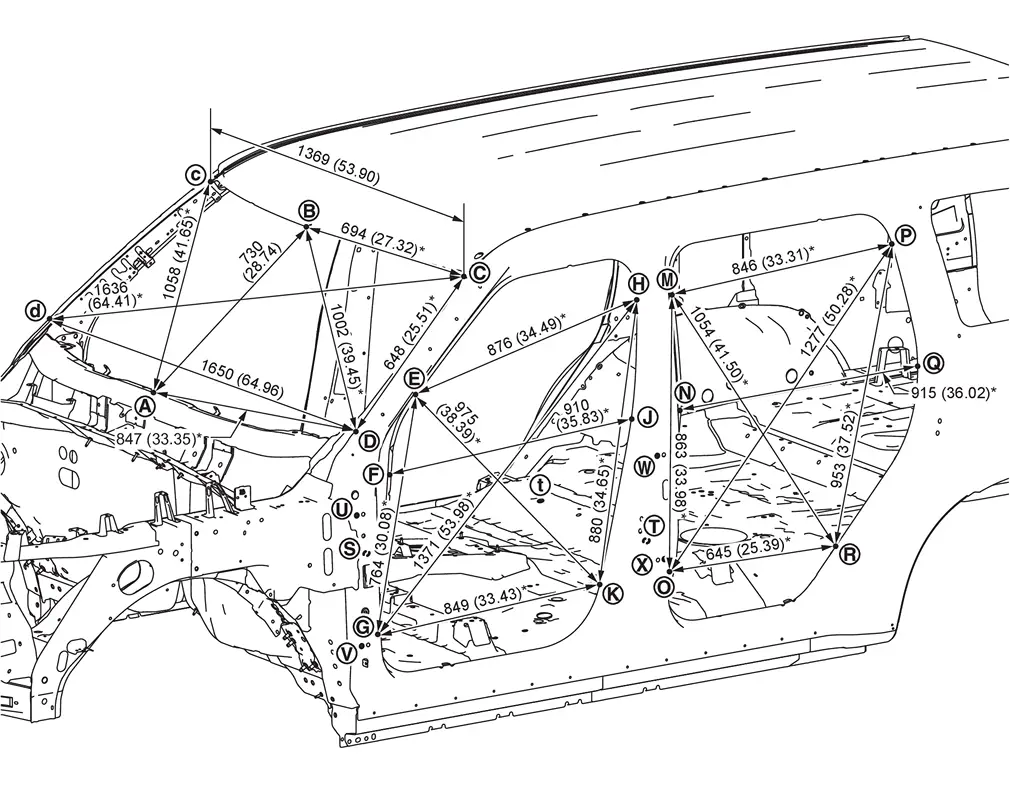

MEASUREMENT (EXTERIOR)
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
 –  | 1591 (62.64) |  –  | 1892 (74.49) |  –  | 849 (33.43) | |||
–  | 1785 (70.28) |  –  | 1647 (64.84) | –  | 909 (35.79) | |||
–  | 1788 (70.39) | –  | 2019 (79.49) |  –  | 1066 (41.97) | |||
| – | 1889 (74.37) | –  | 1766 (69.53) | – | 839 (33.03) | |||
 –  | 1647 (64.84) |  – | 1485 (58.46) | – | 623 (24.53) | |||
–  | 1891 (74.45) | – | 1829 (72.01) | – | 1225 (48.23) | |||
 – | 1636 (64.41) |  – | 1639 (64.53) | – | 1027 (40.43) | |||
| – | 2092 (82.36) |  – | 1642 (64.65) | – | 644 (25.35) | |||
| – | 1848 (72.76) | – | 1115 (43.90) |  –  | 1800 (70.87) | |||
 – | 1527 (60.12) | – | 1160 (45.67) | –  | 1139 (44.84) | |||
| – | 1813 (71.38) | – | 1053 (41.46) | –  | 1197 (47.13) | |||
 – | 1667 (65.63) | – | 1102 (43.39) |  –  | 1851 (72.87) | |||
| – | 1646 (64.80) | – | 954 (37.56) | – | 1216 (47.87) | |||
–  | 1527 (60.12) | – | 1008 (39.68) | – | 1159 (45.63) | |||
| – | 1806 (71.10) | – | 1245 (49.02) | –  | 1794 (70.63) | |||
| – | 1727 (67.99) | – | 1284 (50.55) | –  | 1823 (71.77) | |||
| – | 1902 (74.88) | – | 1050 (41.34) | — | — | |||
–  | 1672 (65.83) | – | 1100 (43.31) | — | — |

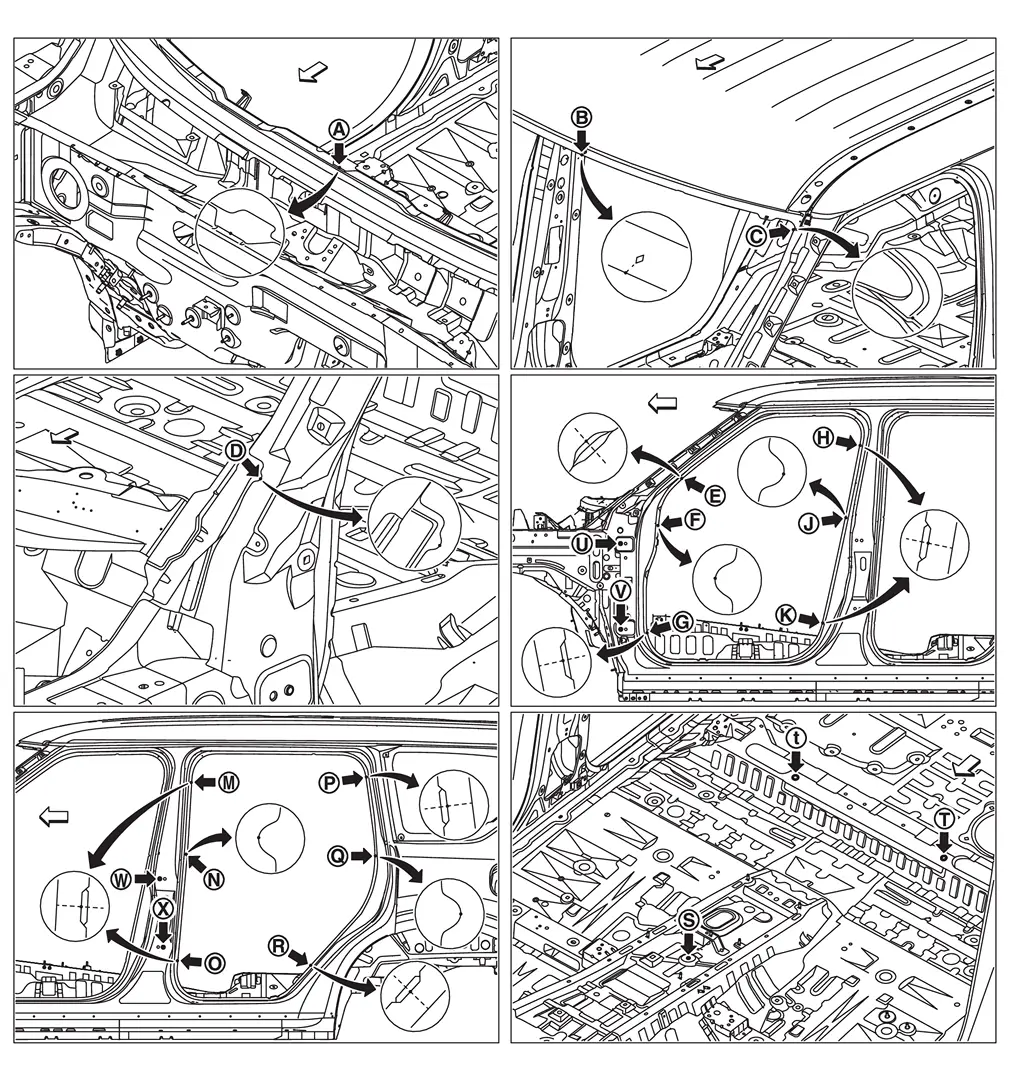

MEASUREMENT POINTS (EXTERIOR)
 : Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
 | Cowl top flange end | | Center pillar indent |
 | Roof flange end of center positioning mark | | Rear fender indent |
  | Outer side body joggle | | Front floor reinforcement hole center φ7 (0.28) |
  | Outer side body indent |  | Rear floor front extension hole center
: 17×15 (0.67×0.59) |
| Front pillar indent | | Door hinge installing hole center φ12 (0.47) |

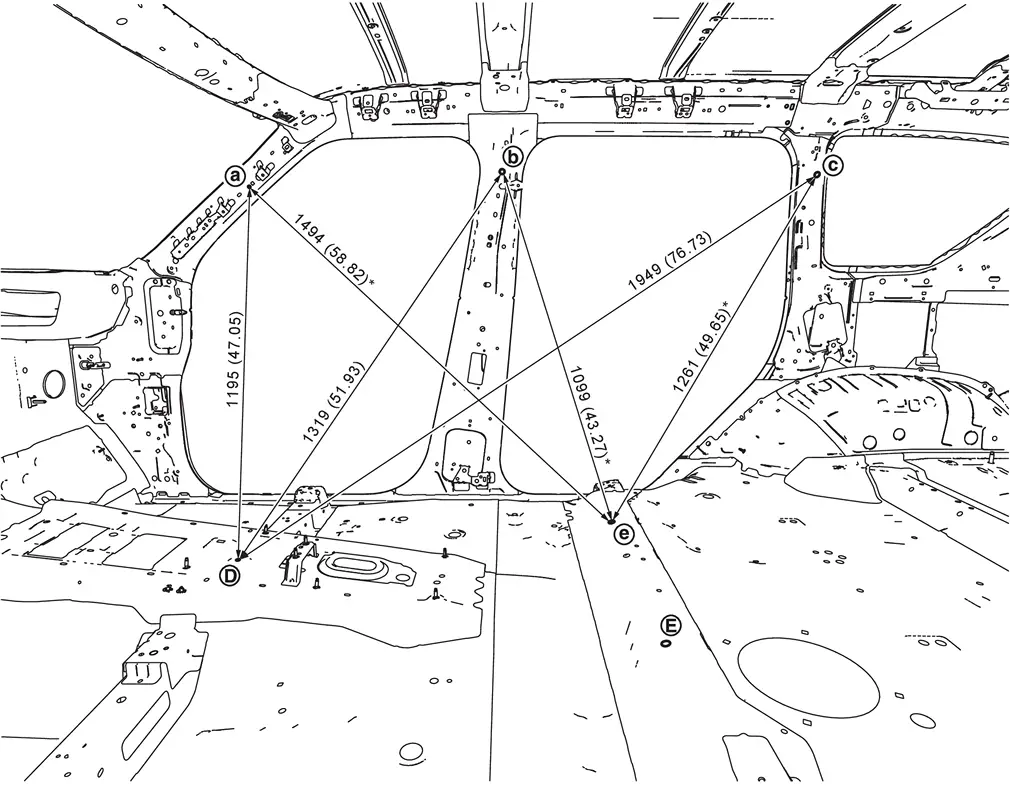

MEASUREMENT (INTERIOR)
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
–  | 1488 (58.58) | –  | 1453 (57.20) | – | 1469 (57.83) | |||
| – | 1155 (45.47) | – | 1284 (50.55) | – | 1924 (75.75) | |||
| – | 1751 (68.94) | – | 1422 (55.98) | – | 1553 (61.14) |

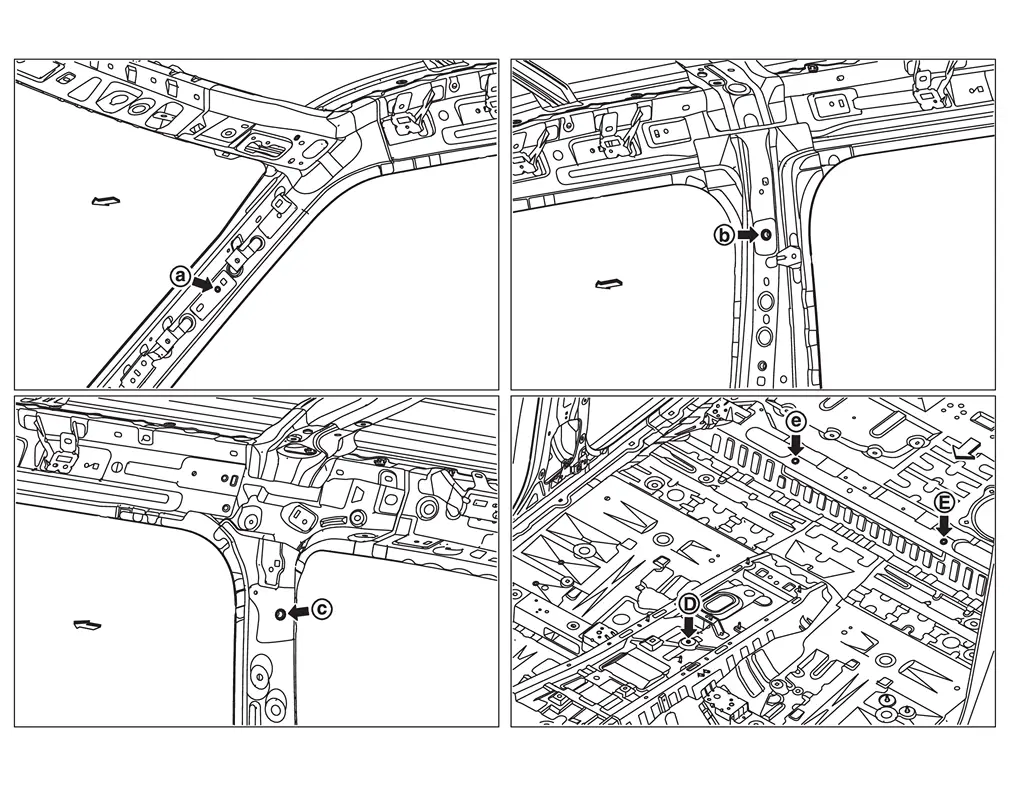

MEASUREMENT POINTS (INTERIOR)
| : Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
| Upper inner front pillar hole center φ7 (0.28) | | Front floor reinforcement hole center φ7 (0.28) |
| Inner center pillar hole center φ15 (0.59) | | Rear floor front extension hole center
: 17×15 (0.67×0.59) |
| Inner rear pillar hole center φ15 (0.59) | — | — |
