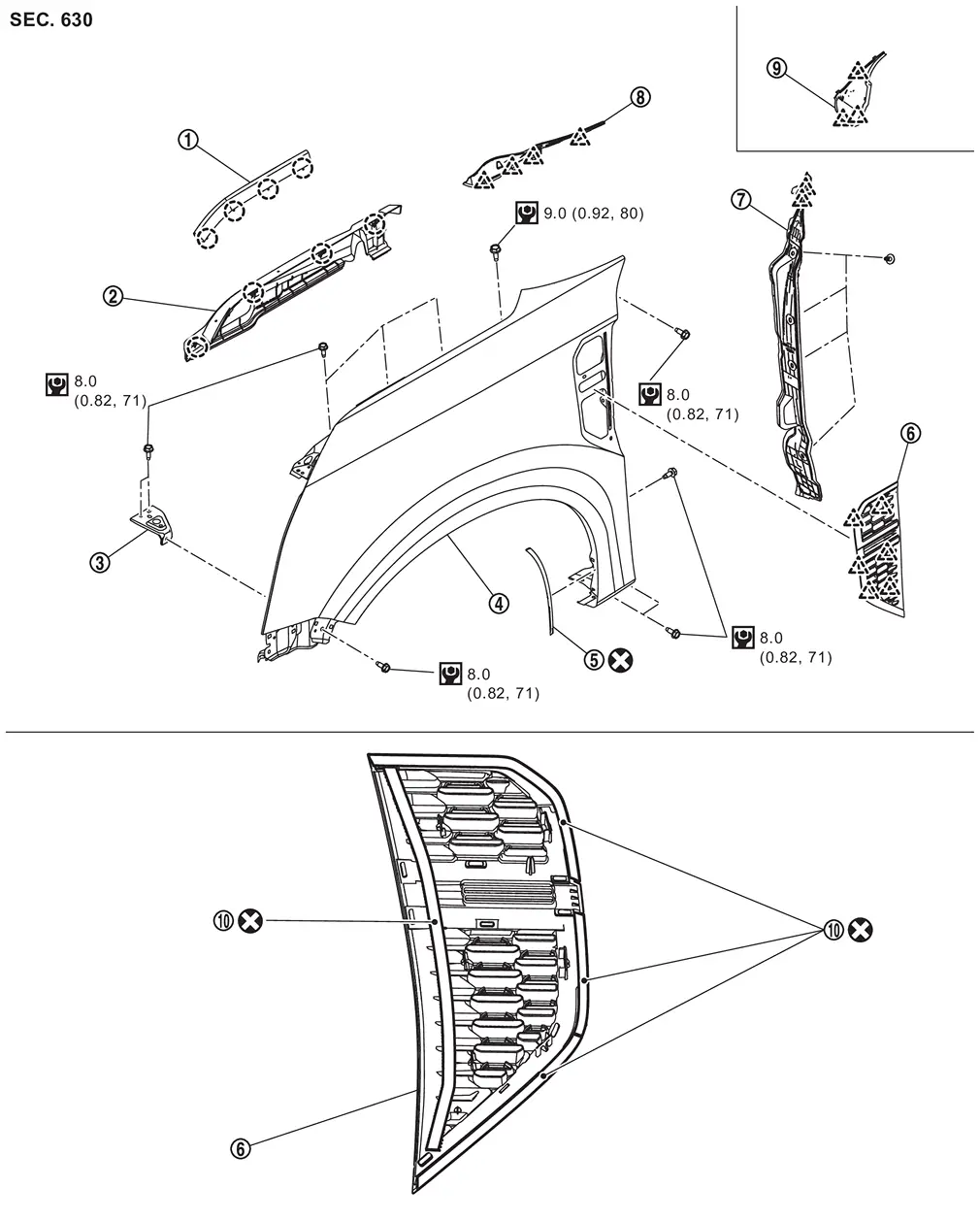

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Hood side seal |  | Front fender drip cover |  | Front fender bracket |
 | Front fender assembly |  | Front fender protector tape |  | Front fender duct |
 | Front fender baffle |  | Fender cover LH |  | Fender cover RH |
 | Double-sided tape [t: 0.8 mm (0.031 in)] | ||||
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly | ||||
 | : N·m (kg-m, in-lb) | ||||
Front Fender
...
Front Fender
...
