Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

Nissan Armada 2025-2026 Service and Repair Manual / Body Interior / Interior — Removal and Installation / Back Door Trim / Removal and Installation

CAUTION:

Never damage the back door panel.

REMOVAL

CAUTION:

Remove back door lower finisher. Refer to Removal and Installation.

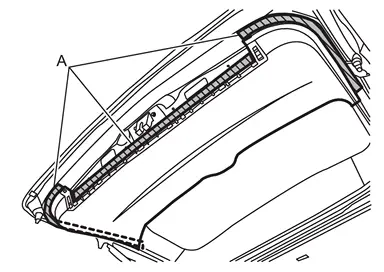

Apply protective tapes (A) on back door panel to protect it from damage.

Insert remover tool (A) close to clip when starting to remove back door inner finisher.

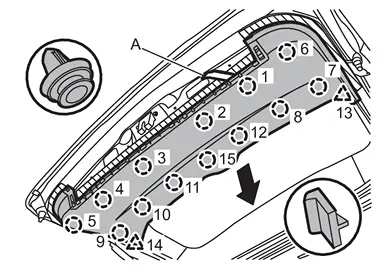

Disengage back door inner finisher fixing clips and pawls according to numerical order 1→15 indicated by arrow as shown in the figure, and then remove back door inner finisher.

CAUTION:

Always use remover tool, when removing fixing clips and pawls.
To avoid damage, disengage fixing clips and pawls according to numerical order and also never pull back door inner finisher without disengage fixing clips.

	: Clip
	: Pawl

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Check in advance that clips and pawls are accurately aligned with the portions on back door panel, and then install by pressing in.

Back Door Inner Finisher

...

Back Door Upper Garnish

...
