Nissan Armada 2025-2026 Service and Repair Manual / Body Interior / Seat — Removal and Installation / Second Seat (captain Seat) / Disassembly and Assembly

CAUTION:

DISASSEMBLY

Remove armrest.Disengage fixing pawls using a remover tool (A), and then remove armrest cover.

: Pawl

Remove mounting bolt, and then remove armrest.

Disengage fixing pawls using a remover tool (A), and then remove tether anchor finisher.

: Pawl

Disengage seatback trim fixing retainer .

Remove seatback lever unit.Apply protective tape (A) to prevent damage.

Disengage fixing pawl using a remover tool (A), and then remove seatback lever unit cap.

: Pawl

Remove seatback lever unit fixing screw

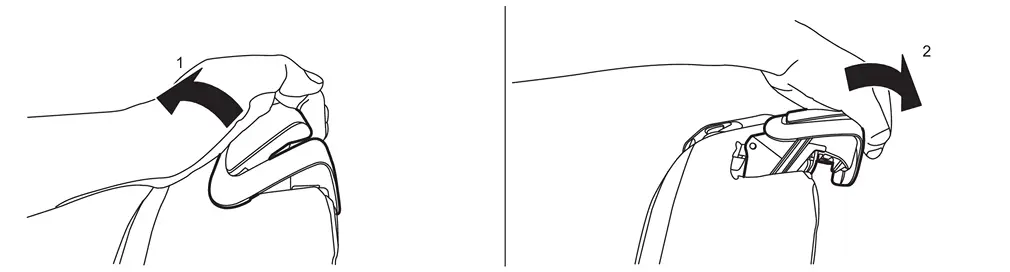

Pull out seatback lever unit and seatback lever cable as a set according to order 1→2 indicated by arrows as shown in the figure.

Disconnect seatback lever cable fixing portions according to order 1→2 indicated by arrows as shown in the figure, and then remove seatback lever unit from seatback lever cable.

Open seatback trim fixing fasteners .

CAUTION:

Disengage harness fixing clip of seatback, and then disconnect harness connector.

CAUTION:

Remove seatback trim and pad as a set from seat frame assembly.

Remove hog rings, and then separate seatback trim and pad.

CAUTION:

Never disassemble seatback pad and seatback heater (if equipped).

Remove seatback lever unit escutcheon.

ASSEMBLY

CAUTION:

Never reuse hog ring after disassembly, using new hog ring.

Always install hog ring in position.

Use new hog ring if removed or crimped unsuccessfully.

Be installed harnesses and harness fixing clips in position.

Second Seatback

...

Second Seat Cushion

...
