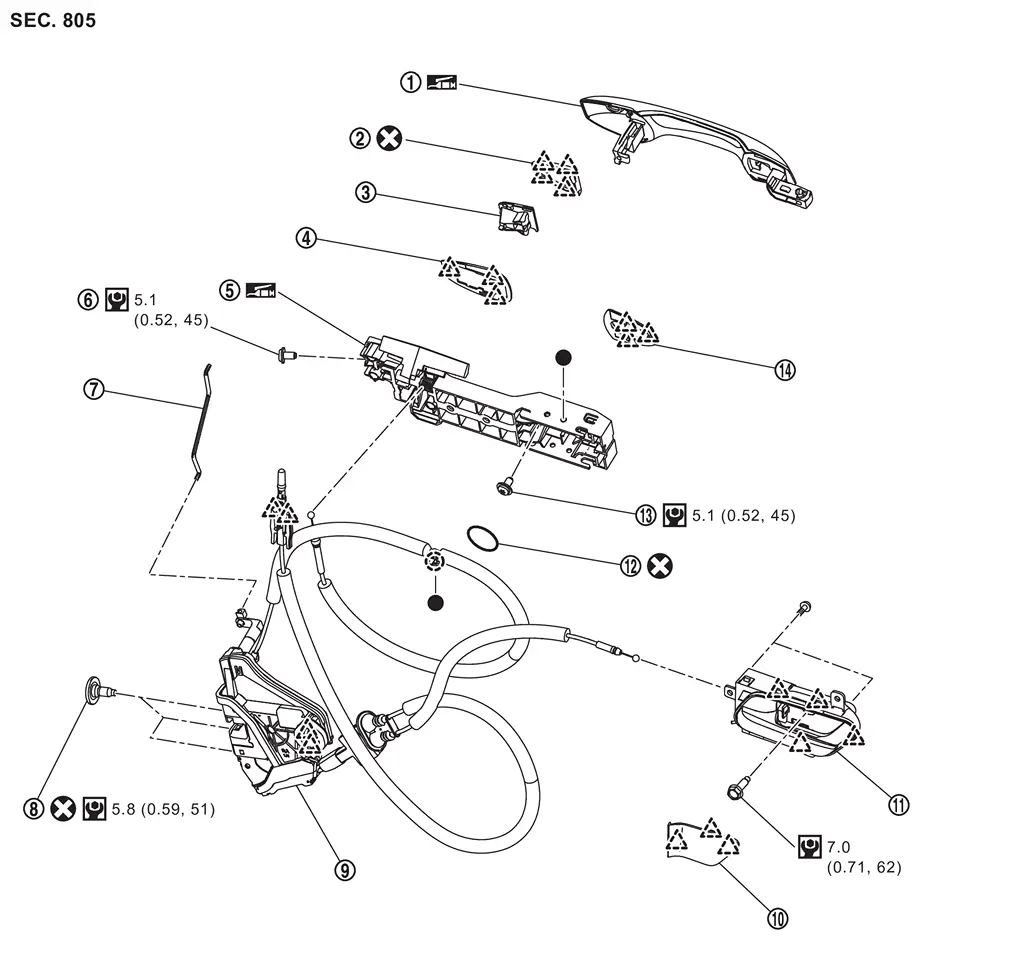

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front door outside handle |  | Escutcheon cover |  | Escutcheon base |
 | Rear gasket |  | Front door outside handle bracket |  | TORX bolt |
 | Key rod (Driver side) |  | TORX bolt |  | Front door lock assembly |
 | Inside handle cap |  | Front door inside handle |  | Hole seal |
 | TORX bolt |  | Front gasket | ||
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Body grease | ||||
