Nissan Armada 2025-2026 Service and Repair Manual: Rear Floor Front
WARNING:
Work after rear fender, outer rear sill reinforcement, outer rear wheelhouse, and inner rear wheelhouse are removed.
Remove the welding point
for easier installation.

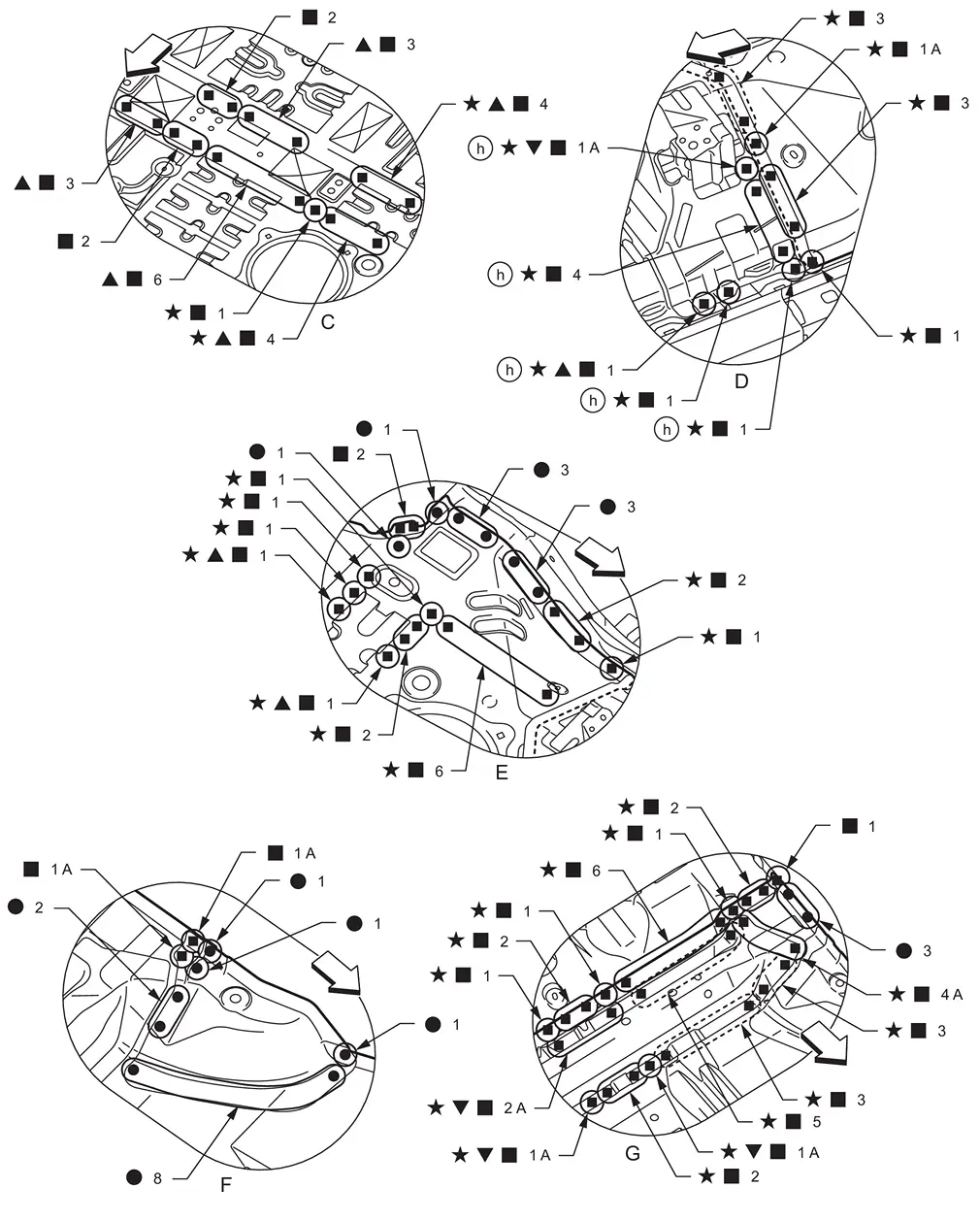

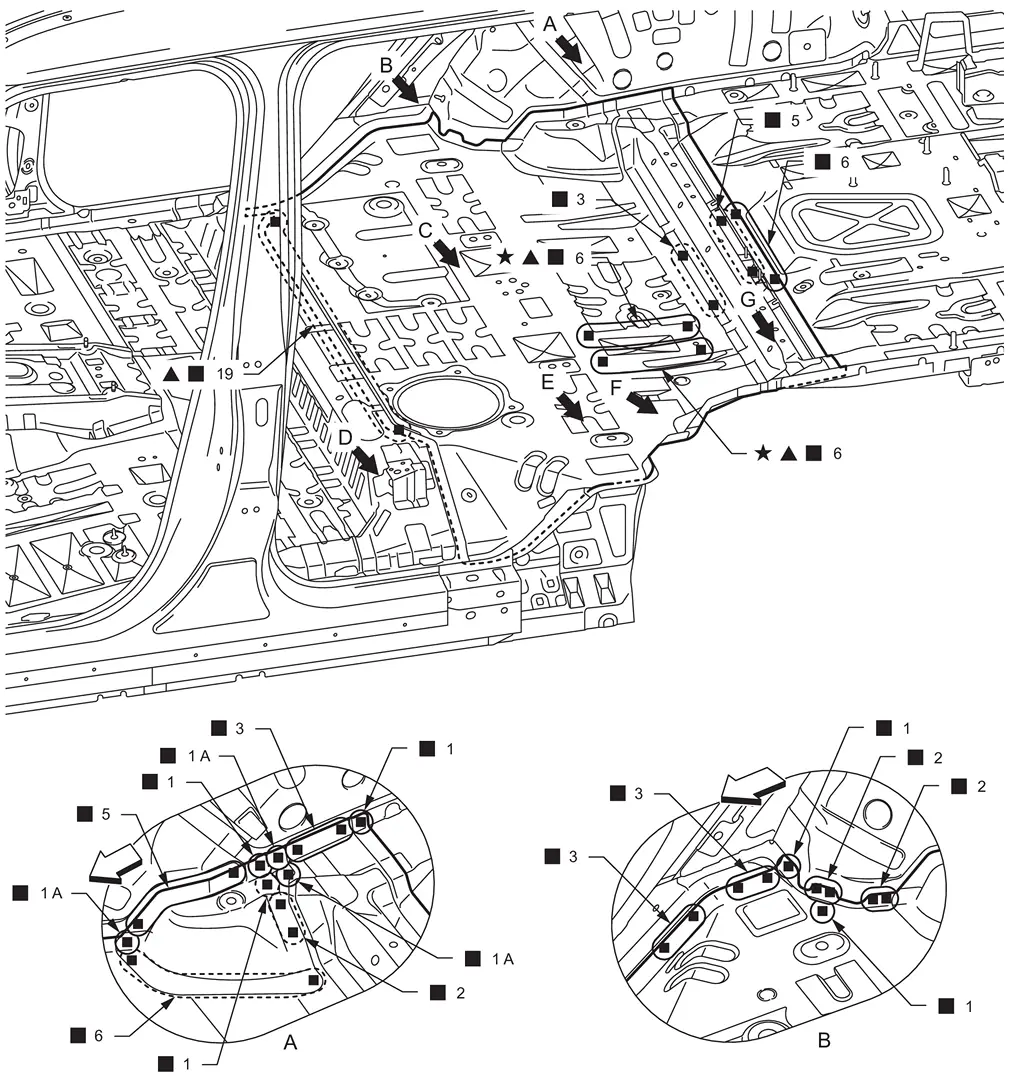

 : Vehicle front | |||||
 : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Weld the parts onto the back of the component part. | |||||
 : Welding method and the number of welding points apply to both sides of the vehicle. | |||||
| Replacement part | |||||
| • | Inner rear wheelhouse reinforcement assembly (RH & LH) | • | Rear floor front | • | 3rd seat mounting bracket |
| : Vehicle front | |||||
| : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Weld the parts onto the back of the component part. | |||||
| : Welding method and the number of welding points apply to both sides of the vehicle. |
Front Floor
WARNING:
Work after lower side dash assembly (LH), outer sill, and inner sill (LH) are removed.
Remove the lower side dash assembly (RH, reusable) from the vehicle for easier installation.
: Drill φ ...
Rear Seat Crossmember
WARNING:
Work after rear fender, outer rear sill reinforcement, outer rear wheelhouse, inner rear wheelhouse, and rear floor front are removed.
Weld "view F" as shown in the illustration after install ...
