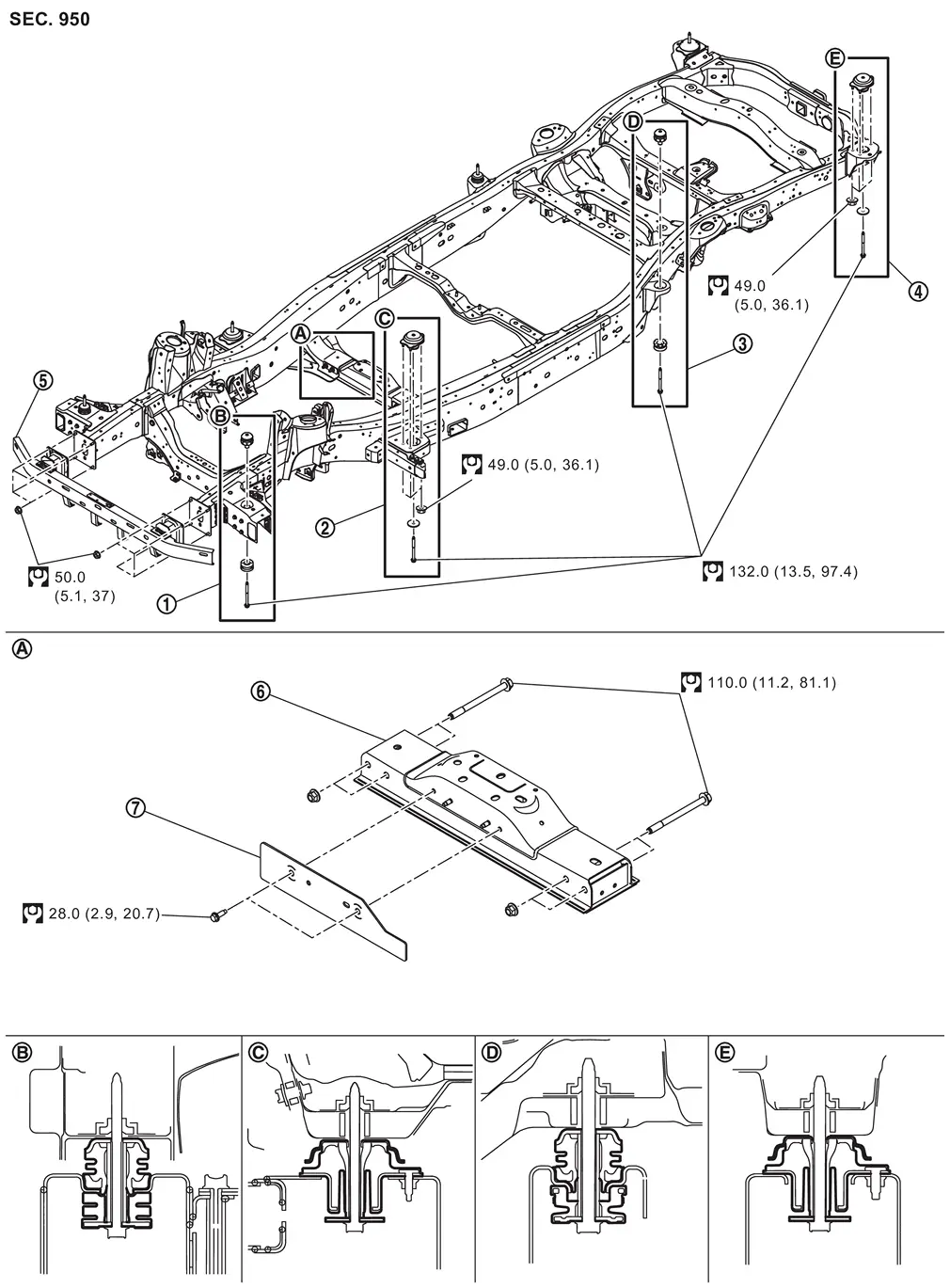

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Cab mounting insulator (1st) |  | Cab mounting insulator (2nd) |  | Cab mounting insulator (3rd) |
 | Cab mounting insulator (4th) |  | Front bumper cross member |  | Rear engine mounting cross member |
 | Chipping protector | ||||
 | : N·m (kg-m, ft-lb) | ||||
Removal and Installation
WARNING:
CAUTION:
To reduce the vehicle weight and prevent side sill deformation, remove the following parts before lift up the vehicle.
Front door assembly. Refer to Removal and Installation.
Rear do ...
