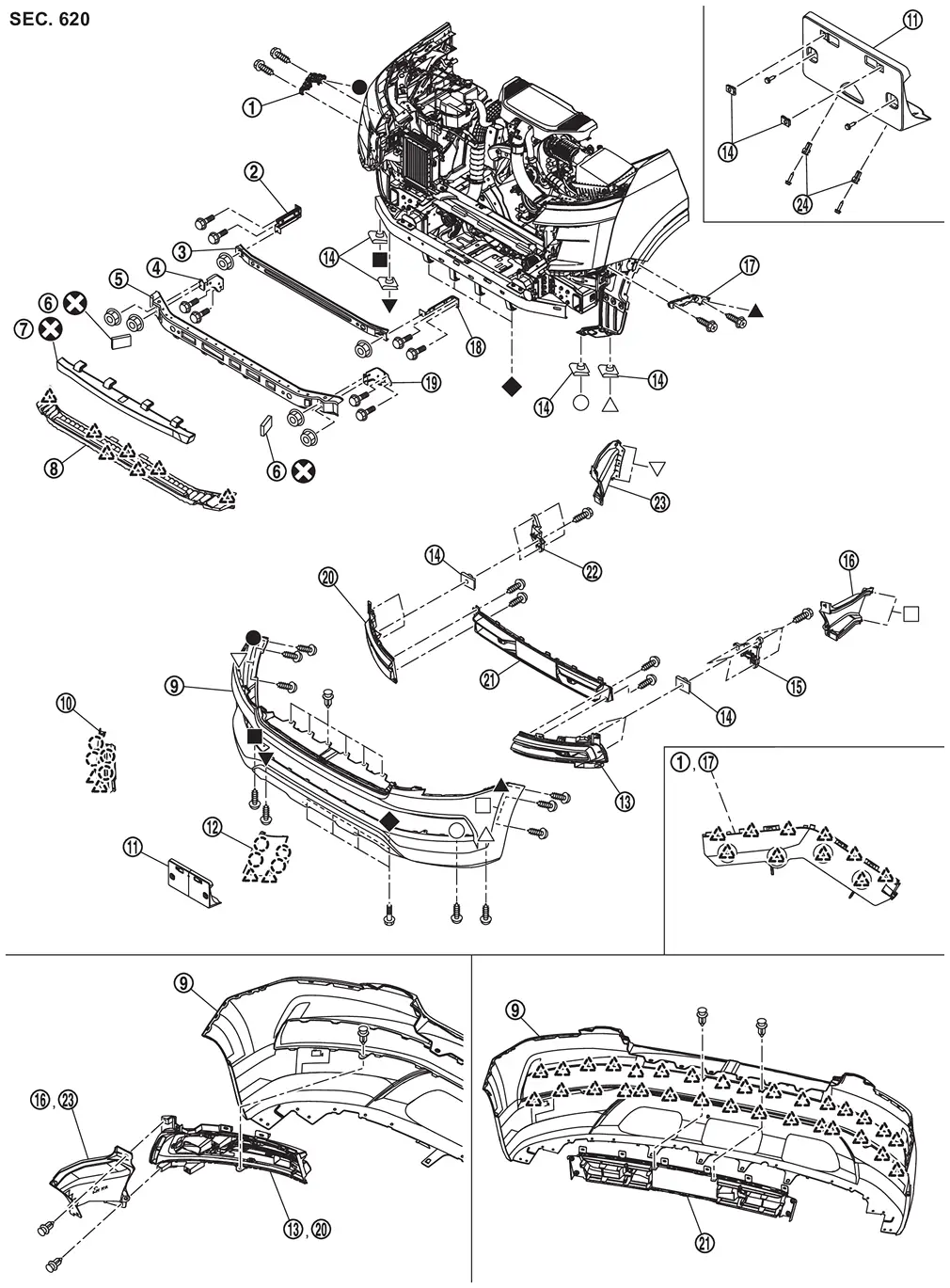

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front bumper side bracket RH |  | Front bumper side retainer RH |  | Front bumper retainer |
 | Front bumper side stay RH |  | Front bumper reinforcement |  | Seal |
 | Front bumper energy absorber A |  | Front bumper energy absorber B |  | Front bumper fascia |
 | Front bumper side finisher RH |  | License plate bracket |  | Front bumper side finisher LH |
 | Front bumper side grille LH |  | U nut |  | Front bumper bracket LH |
 | Front bumper side duct LH |  | Front bumper side bracket LH |  | Front bumper side retainer LH |
 | Front bumper side stay LH |  | Front bumper side grille RH |  | Front bumper grille |
 | Front bumper bracket RH |  | Front bumper side duct RH |  | Grommet |
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 ,  ,  ,  ,  ,  ,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
City Models
...
Removal and Installation
WARNING:
CAUTION:
Front bumper fascia assembly is made of resin. Never apply excessive force to it, and be careful to prevent contact with oil.
REMOVAL
Remove front grille. Refer to Removal and Instal ...
