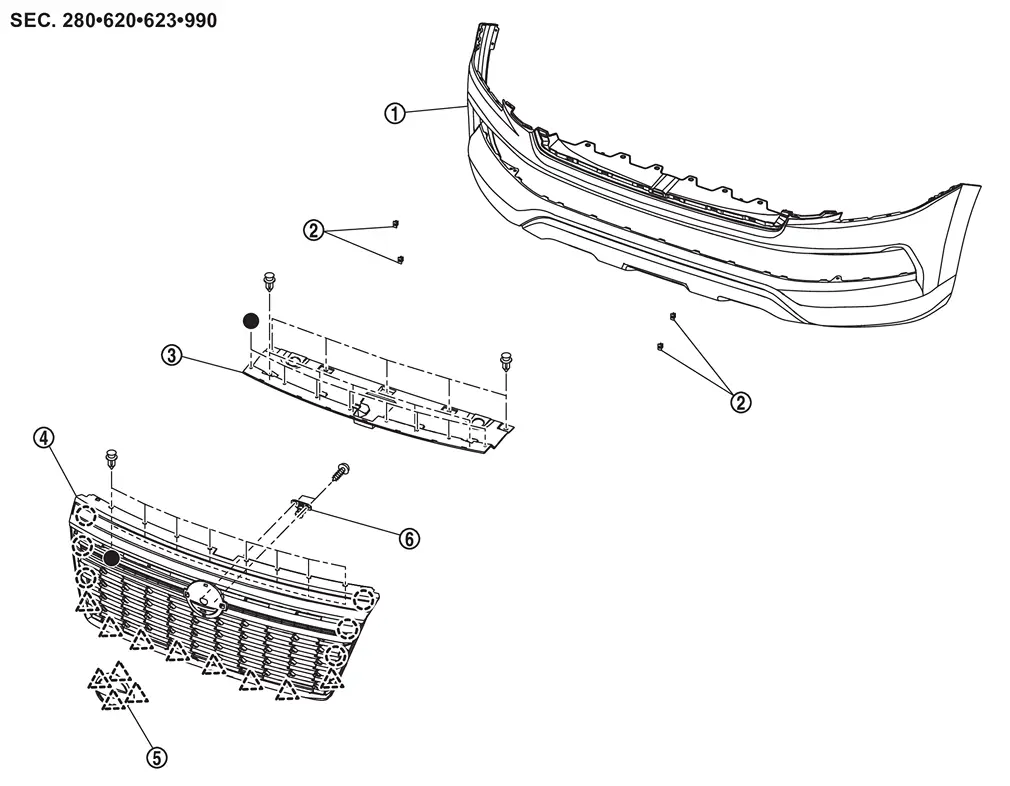

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front bumper fascia |  | Grommet |  | Front grille upper |
 | Front grille |  | Front emblem |  | Front camera |
 | : Clip | ||||
 | : Pawl | ||||
 : Indicate that the part is connected at points with same symbol in actual vehicle. | |||||
City Models
...
Removal and Installation
REMOVAL
Fully open hood assembly.
Remove fixing clips .
Remove fixing clips .
Disengage front grille fixing clips to secure workspace, and then remove front grille upper .
: Clip
Disengage f ...
