Nissan Armada 2025-2026 Service and Repair Manual: MULTI-WAY CONTROL VALVE : Removal & Installation
WARNING:
REMOVAL
Remove engine cover. Refer to Removal and Installation.
Remove front under cover using a power tool. Refer to Removal and Installation.
Drain engine coolant. Refer to ENGINE COOLANT : Draining.
CAUTION:
Perform this step when the engine is cold.
Remove air inlet tube 2. Refer to Removal & Installation.
Remove inlet air duct 2. Refer to Removal and Installation.
Remove electric throttle control actuator. Refer to Removal and Installation.

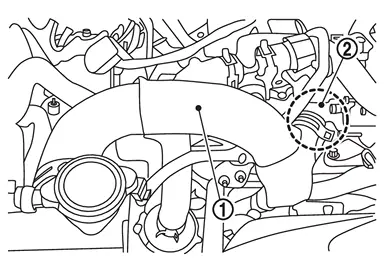

Remove radiator hose (upper)
from multi-way control valve
side.
Remove each remaining hose connected to the multi-way control valve.
Remove multi-way control valve.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Do not reuse O-ring.
Care should be taken not to apply scratches, dents and foreign bodies to the respective surfaces for mounting gasket and engine coolant temperature sensor 1.
Be careful to install the O-ring in the correct position.
Make sure the O-ring is free from separation and contamination with oil.
O-ring should be installed to engine coolant temperature sensor 1 without being twisted. After that, apply Genuine NISSAN Long LifeAntifreeze/Coolant (blue) to outer peripheral surface of O-ring and install engine coolant temperature sensor 1 to multi-way controlvalve.
MULTI-WAY CONTROL VALVE : Exploded View
Multi-way control valve O-ring Water outlet Engine coolant temperature sensor 1 Gasket To oil cooler hose 1. Refer to Exploded View. To electric water pump. Refer to Exploded View. To radiato ...
MULTI-WAY CONTROL VALVE : Inspection
INSPECTION AFTER INSTALLATION
Check that the reservoir tank cap is tightened.
...
